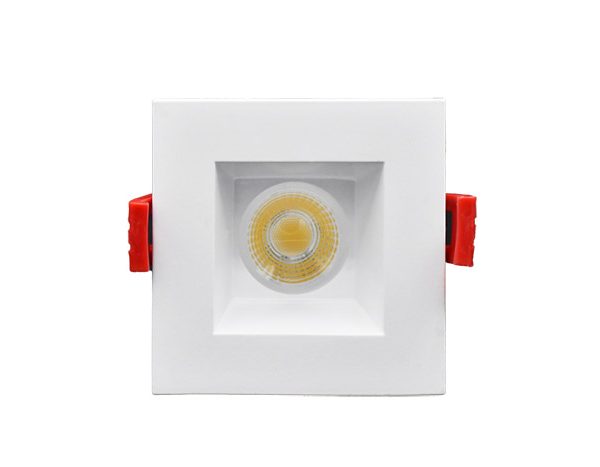

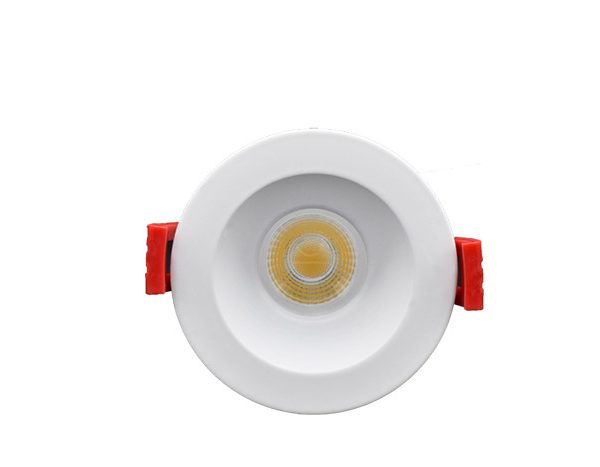

MiniTask Selectable Recessed Mini Downlights

Low profile recessed MiniTask downlights with selectable 5CCT and 90+ CRI light source. Available in 1” and 2”, round or square in white or black color. The fixture is fully dimmable. No power supply required.

  • 120V
  • Multiple wattages
  • Trim styles – square and round
  • Trim sizes – 1” and 2”
  • Finishes – black and white
  • 5CCT selectable switch (2700K / 3000K / 3500K / 4000K / 5000K)
  • Dimmable ELV
  • 38° beam angle
  • 90+ CRI
  • Wet location, indoor covered ceiling
  • IC rated



Category:
  • SPECIFICATION SHEET
  • IES FILES
  • INSTALLATION INSTRUCTIONS

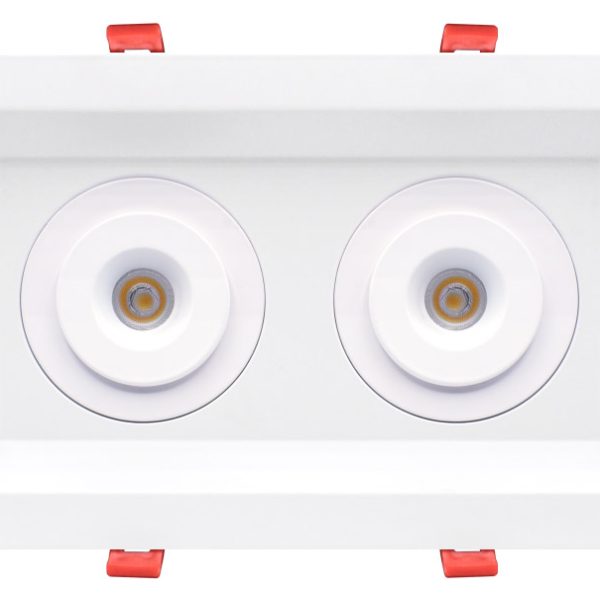

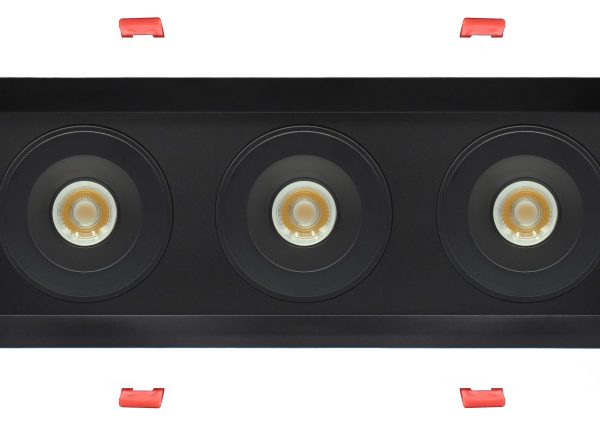

  • RMP INSTRUCTIONS

Description

Ordering Information

Catalog No. Trim Style CRI Color Temp. Lumens in 3500K Finish

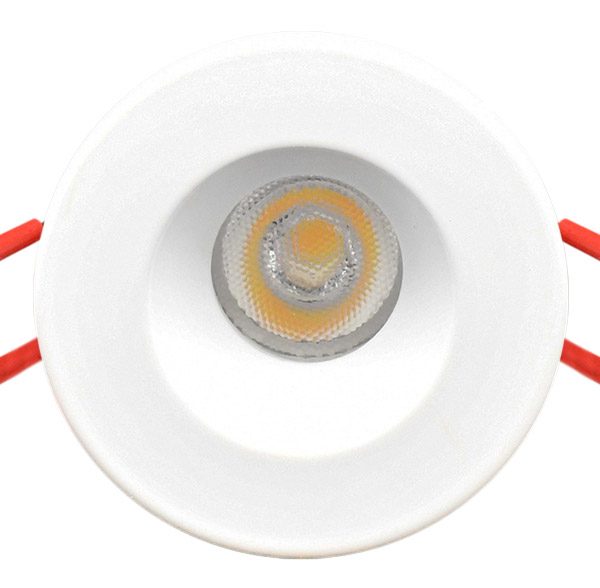

MTR1-5CCT-W 1″ Round 90+
5 CCT Selectable Switch:
2700K / 3000K / 3500K / 4000K / 5000K
495 White

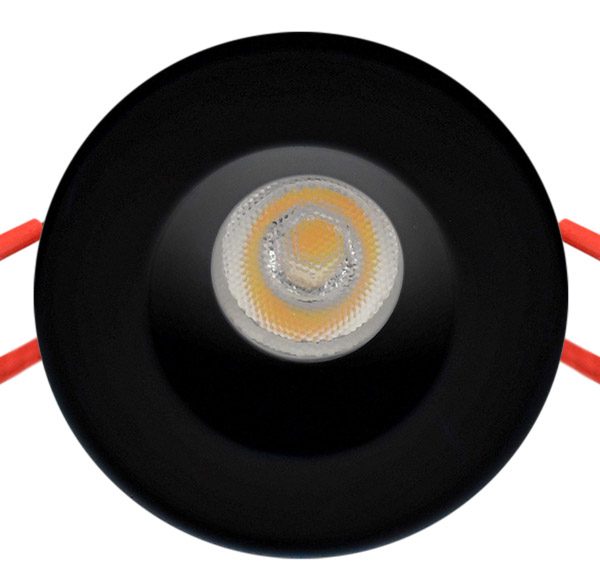

MTR1-5CCT-B 1″ Round 90+ 495 Black

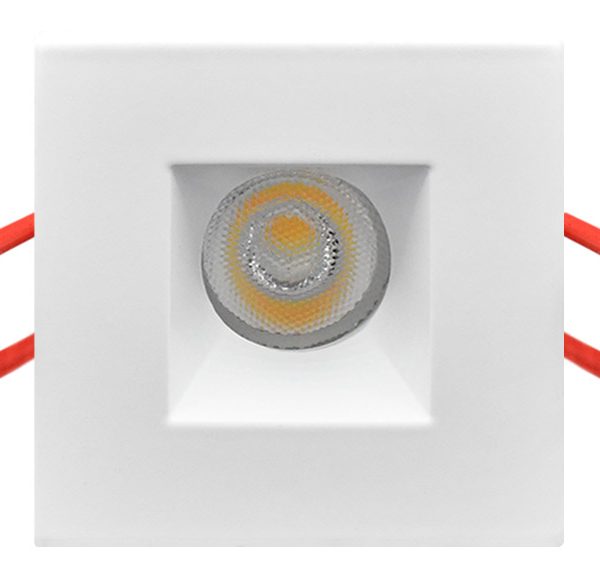

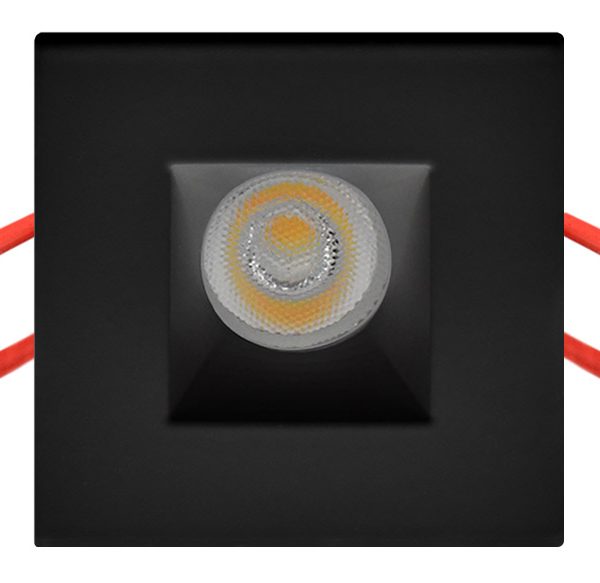

MTS1-5CCT-W 1″ Square 90+ 495 White
MTS1-5CCT-B 1″ Square 90+ 495 Black

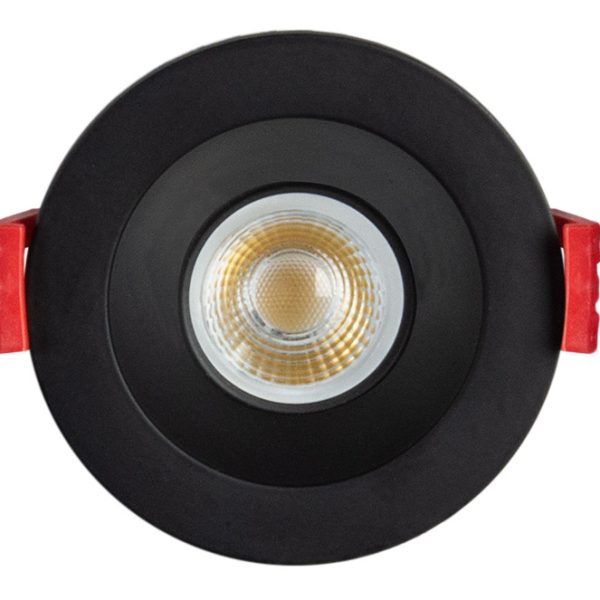

MTR2-5CCT-W 2″ Round 90+ 1080 White
MTR2-5CCT-B 2″ Round 90+ 1080 Black
MTS2-5CCT-W 2″ Square 90+ 1080 White

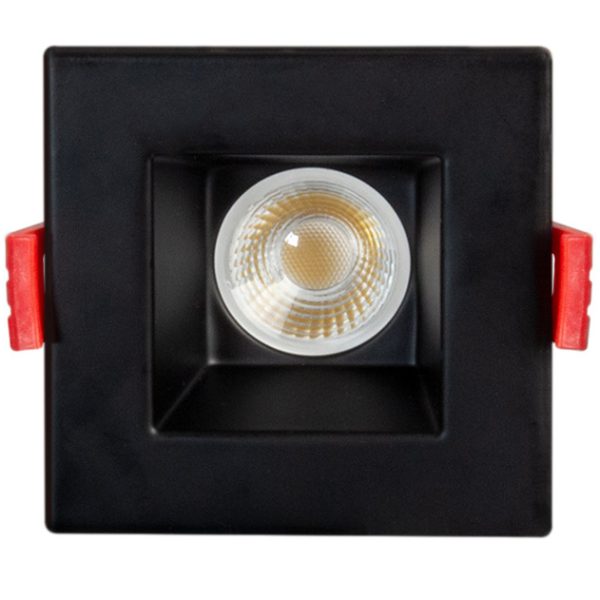

MTS2-5CCT-B 2″ Square 90+ 1080 Black

Accessories

Catalog No. Description
CHDL-UNV-NCP Universal Mounting Plate
