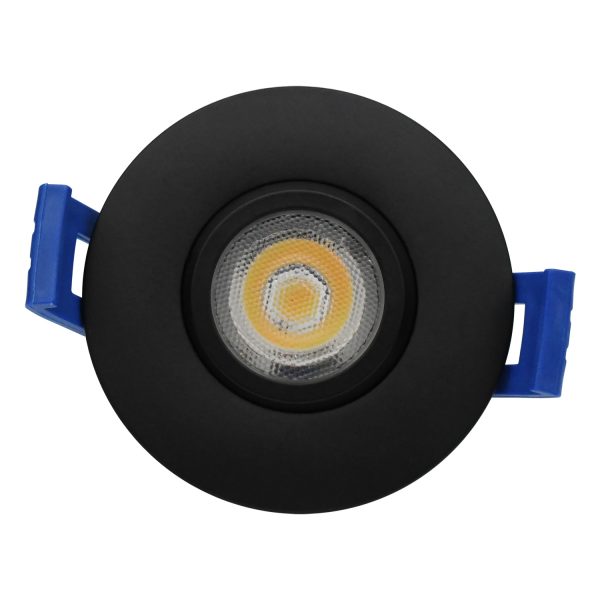

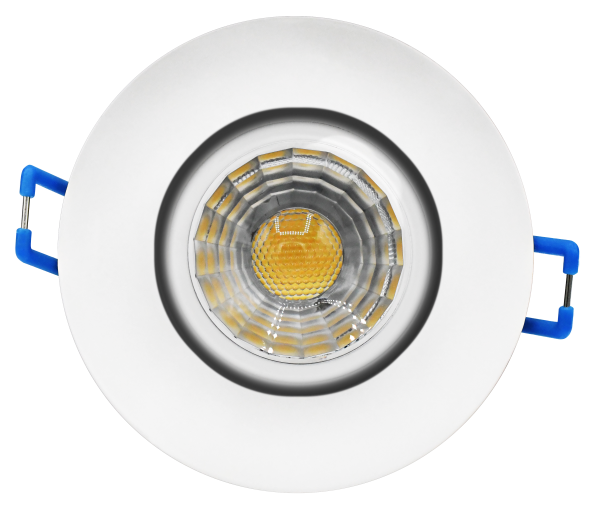

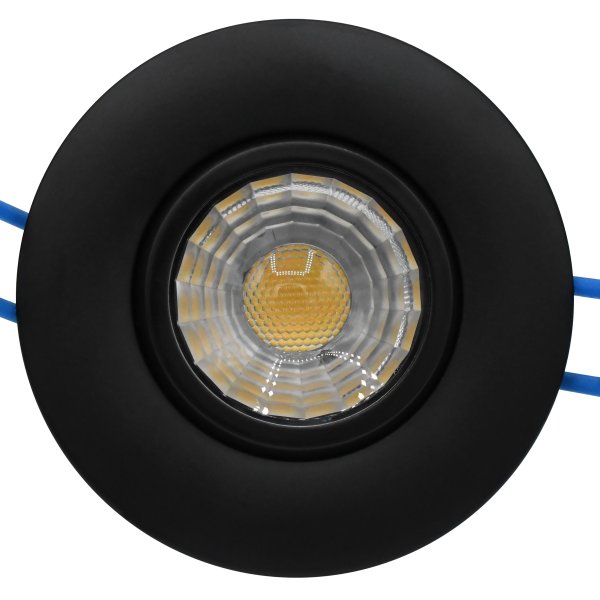

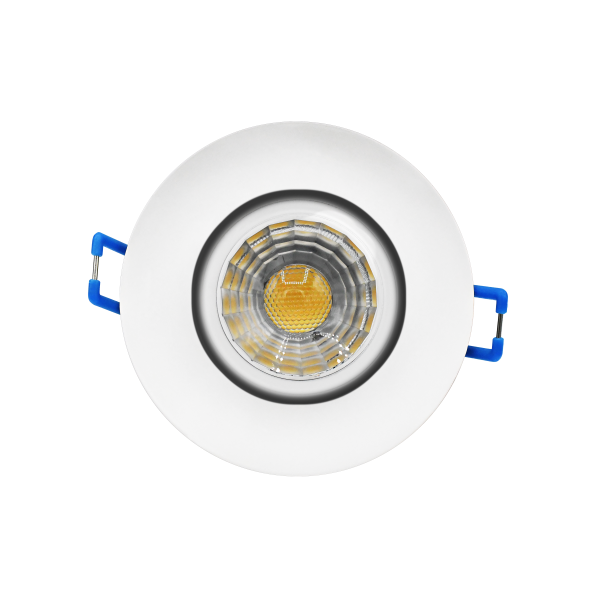

MiniTask Selectable Gimbal Recessed Mini Downlights

Round adjustable recessed Mini Task selectable 5CCT downlights with a 90+ CRI light source. Available in 1” and 2” white. The fixture is fully dimmable. Quick to install. Versatile in adjusting to aiming needs. Power supply integrated into included wiring box. No separate power supply required.

  • 120V
  • Multiple wattages
  • Round trim style
  • Trim sizes – 1” and 2”
  • Adjustable
  • White finish
  • 5CCT selectable switch (2700K / 3000K / 3500K / 4000K / 5000K)
  • Dimmable ELV
  • 38° beam angle
  • 90+ CRI
  • Wet location
  • +/- 15° tilt range over 360°
  • IC rated



Category:
  • SPECIFICATION SHEET
  • IES FILES
  • INSTALLATION INSTRUCTIONS
  • RMP INSTRUCTIONS

Description

Ordering Information

Catalog No. Trim Style CRI Color Temp. Lumens in 3500K Finish
MTRA1-5CCT-W/B 1″ Round Adjustable 90+
5 CCT Selectable Switch:
2700K / 3000K / 3500K / 4000K / 5000K
360 White/Black
MTRA2-5CCT-W/B 2″ Round Adjustable 90+ 610 White/Black

Accessories

Catalog No. Description
CHDL-UNV-NCP Universal Mounting Plate
RMP-2-B Regressed Multi-Plate, 2 Light, Black/White Trim
RMP-2-WH Regressed Multi-Plate, 2 Light, White/White Trim
RMP-3-B Regressed Multi-Plate, 3 Light, Black/White Trim
RMP-3-WH Regressed Multi-Plate, 3 Light, White/White Trim
RMP-AD1-B Regressed Multi-Plate Adapter 1 Black
RMP-AD1-WH Regressed Multi-Plate Adapter 1 White
RMP-AD2-B Regressed Multi-Plate Adapter 2 Black
RMP-AD2-W Regressed Multi-Plate Adapter 2 White
