LineDRIVE 12VDC / 24VDC Magnetic LED Dimmable Power Supplies

LineDRIVE Series 12VDC / 24VDC Magnetic LED Power Supplies are Class 2 rated and designed to operate with standard MLV dimmers. For vertical mounting only.

Encased in a low profile powder coated steel enclosure that includes 2 knock-outs to enable easy installation, these LineDRIVE power supplies are the perfect choice GM Lighting products.

See website and spec sheets for dimmer compatibility.



  • Universal Input and Output
  • 120V/277V dual input
  • 12V or 24V output
  • Dimmable (MLV)
  • Dims down to 5%
  • Steel case
  • NEMA 3R for outdoor use
  • Auto-reset protection for short circuits and over voltage
  • 5 year warranty
  • ETL for indoor and outdoor use



Category:
  • LineDRIVE Power Supply CROSSOVER GUIDE
  • LineDRIVE Power Supply QUICK GUIDE
  • MAGNETIC SPEC SHEET
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Watts Description Weight Dimensions

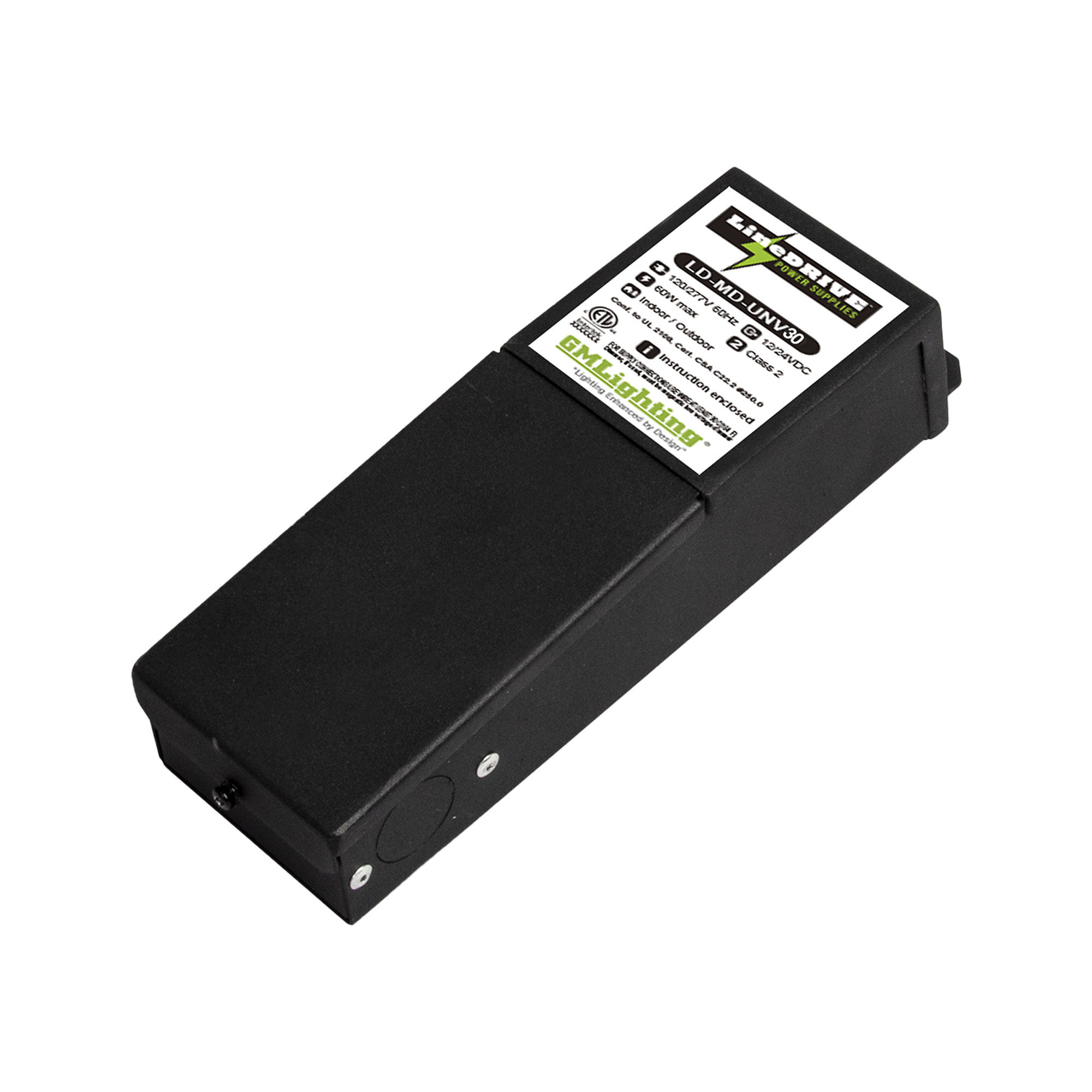

LD-MD-UNV30 30W 12V / 24V – 120V or 277V/60Hz – Class 2 – Auto Reset 2.5 lbs. 8.27″L x 2.5″W x 1.95″H
LD-MD-UNV60 60W 12V / 24V – 120V or 277V/60Hz – Class 2 – Auto Reset 4.5 lbs. 8.86″L x 3.31″W x 2.89″H
LD-MD-UNV96-24 96W 24V – 120V or 277V/60Hz – Class 2 – Auto Reset 5.1 lbs. 8.86″L x 3.31″W x 2.89″H
LD-MD-UNV150-12 150W 12V – 120V or 277V/60Hz – Class 2 – Auto Reset – 3 x 50W per channel 9.0 lbs. 11.02″L x 4.88″W x 3.62″H
LD-MD-UNV200-24 192W 24V – 120V or 277V/60Hz – Class 2 – Auto Reset – 2 x 96W per channel 10.0 lbs. 11.02″L x 4.88″W x 3.62″H
LD-MD-UNV300-24 288W 24V – 120V or 277V/60Hz – Class 2 – Auto Reset – 3 x 96W per channel 10.5 lbs. 11.02″L x 4.88″W x 3.62″H
