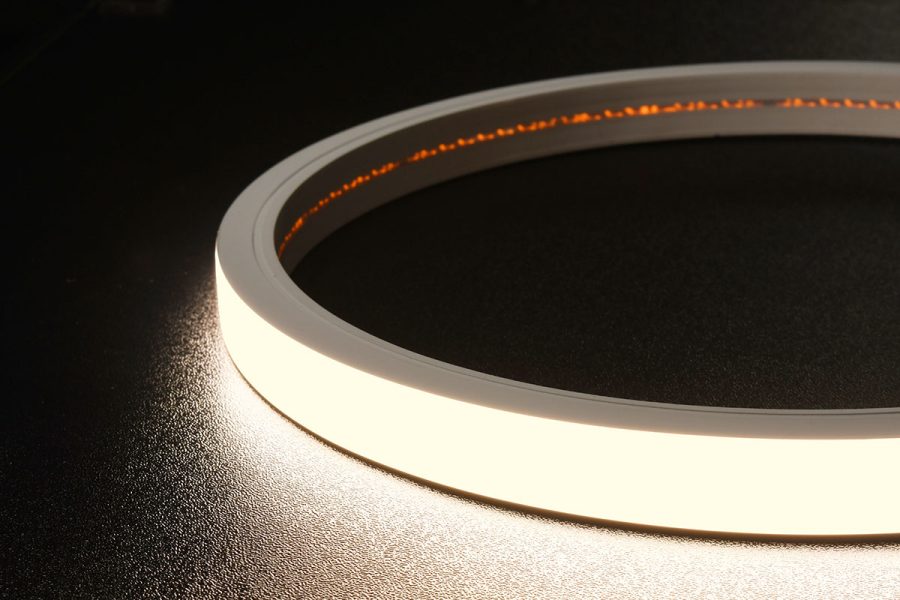

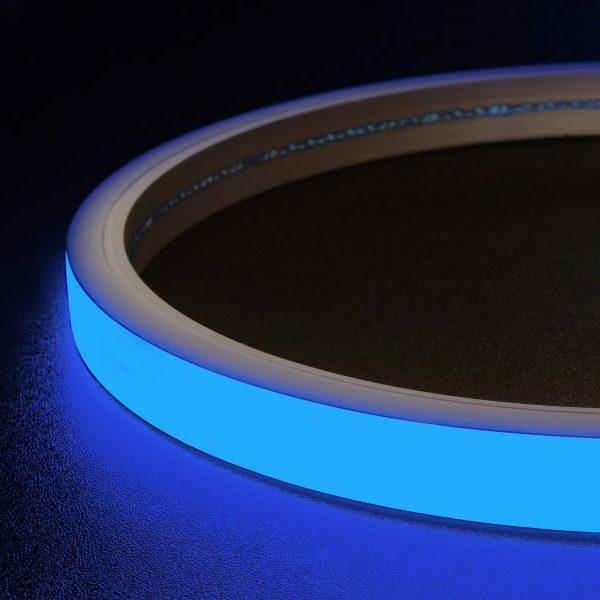

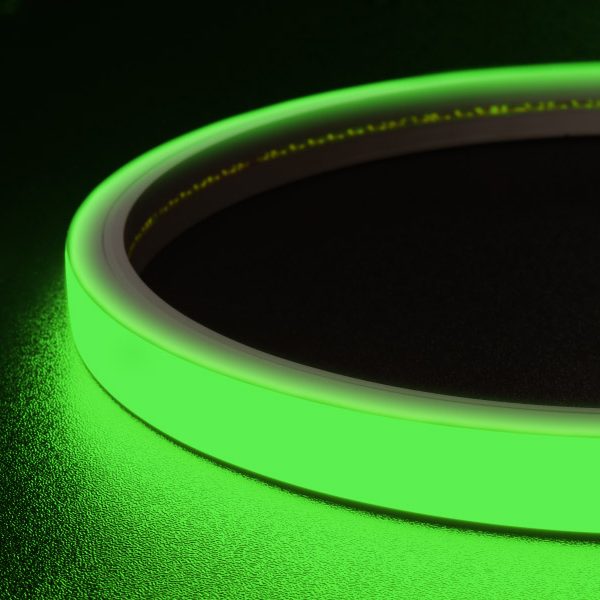

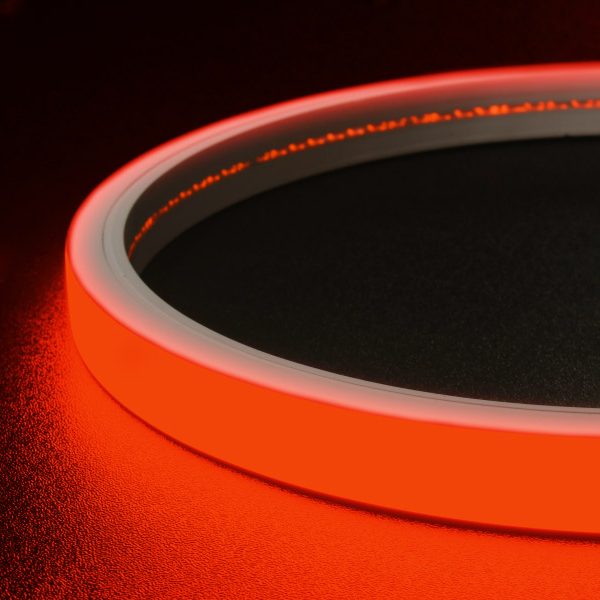

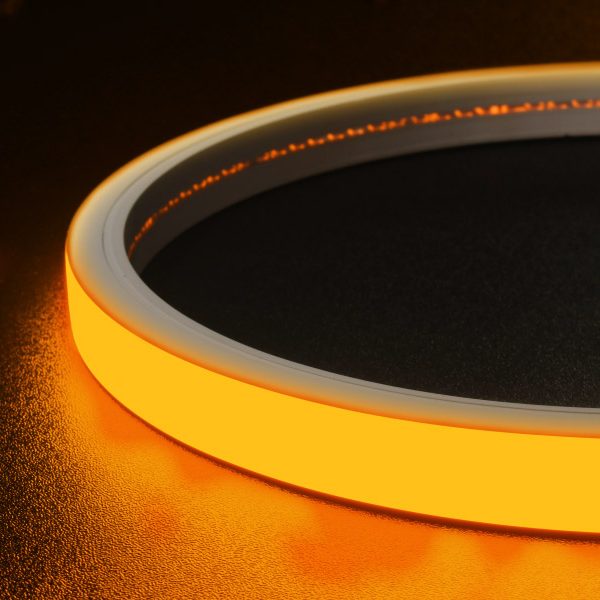

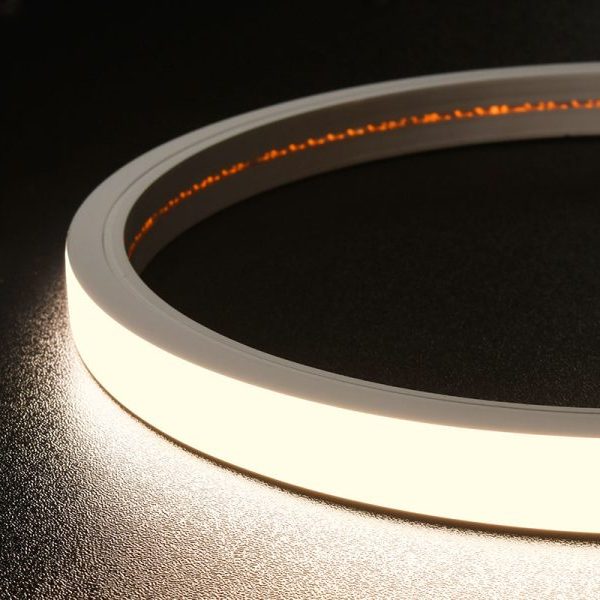

NeoVISION120 120V TopFlex Neon Tape

120VAC operation for higher power and brightness. Flexible linear “neon” tape is designed for applications that require ultra-rich light and color saturation that is characteristic of neon. TopFlex enables lighting along straight or inward/outward curved surfaces. NeoVision120 tapes provide long, continuous runs up to 163 feet.

  • 120VAC operation (no driver required)
  • 3.4W per foot (colors) or 4.3W per foot (white)
  • Wet location – IP65
  • Multiple power feed options
  • Tape encased in UV stable silicone (UV protected)
  • Triac/ELV Dimmable
  • 2700K, 3000K or 4000K white / Amber, Blue, Green or Red
  • 120° viewing angle
  • Maximum run: 163′
  • Made to order in 12” increments



Category:
  • NeoVISION120 TopFlex SPEC SHEET
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Lumens per Foot CRI Color Temp. Max. Run
NV120T-4W-27K-FT 232 90+ 2700K 163′
NV120T-4W-30K-FT 255 90+ 3000K 163′
NV120T-4W-40K-FT 257 90+ 4000K 163′
NV120T-3W-AM-FT 59 90+ AMBER 163′
NV120T-3W-BL-FT 34 90+ BLUE 163′
NV120T-3W-GR-FT 194 90+ GREEN 163′
NV120T-3W-RD-FT 94 90+ RED 163′

Accessories

Catalog No. Description
NV120T-HW-8-EF Hardwire End Feed w/Filter & 8A Fuse
NV24T-PF-BF8 Tape to power flexible bottom feed – 8 ft. length
NV120T-HW-8-BF Hardwire Bottom Feed w/Filter & 8A Fuse
NV120T-PC-8-EF Plug-in End Feed w/Filter & 8A Fuse
NV120T-PC-8-BF Plug-in Bottom Feed w/Filter & 8A Fuse
NV120T-MC-FC Front Clip, 20 Clips/40 Screws
NV120T-MC-A Back Mounting Clip, 20 Clips/20 Screws
NV120T-CHL-A4 4 ft Channel with 4 Screws
NV120T-CHL-A8 8 ft Channel with 8 Screws
NV120T-FLEX-CHL-10 SideFlex 10 ft Channel with 22 Screws
