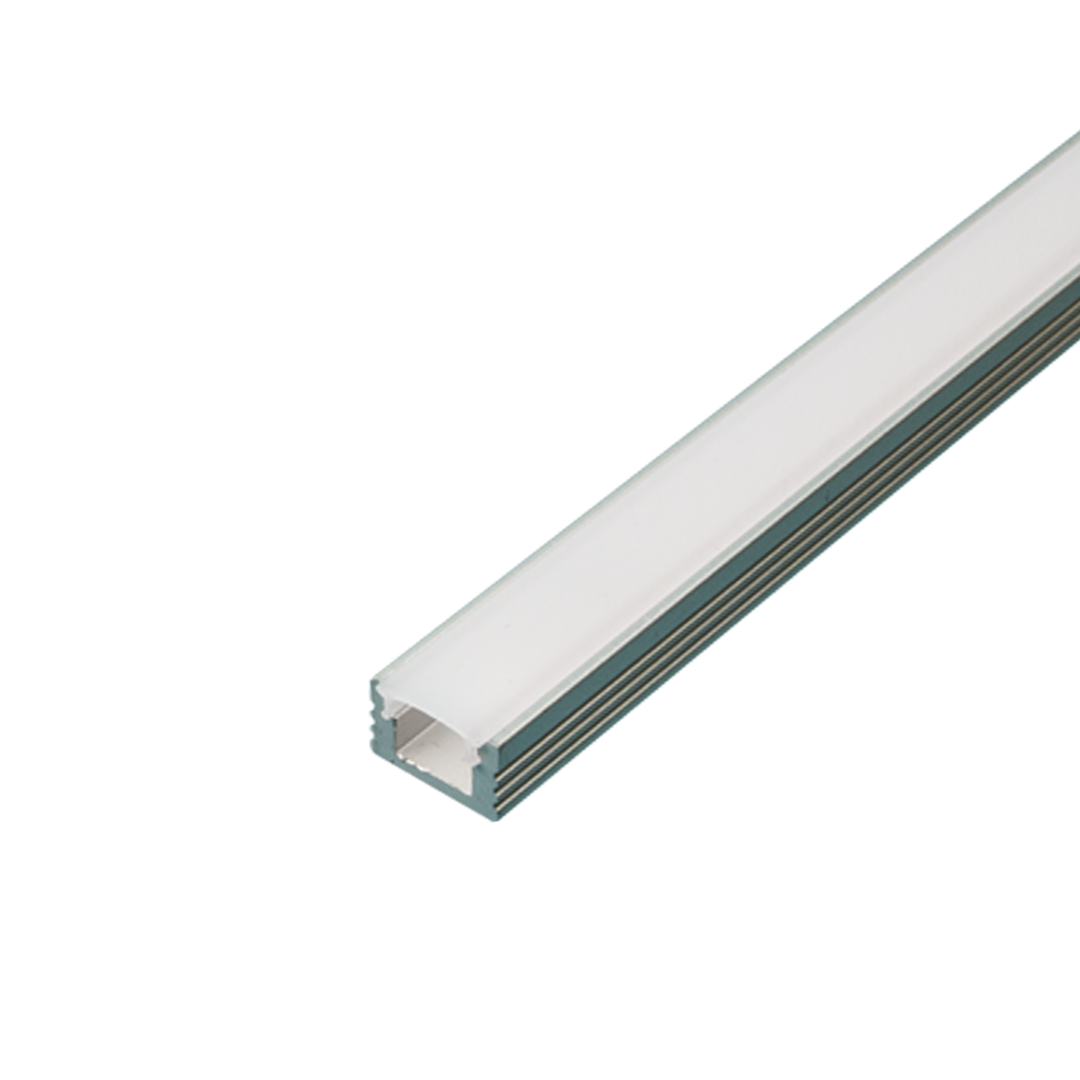

Aluminum Linear LED Tape Mounting Channels

GM Lighting’s aluminum channels accepts all GM Lighting LEDTask flexible LED Linear tape. Perfect for installations that require a rigid extruded channel that the LED tape can be mounted into. Each channel and lens can be cut in the field to the desired length needed.

Now there’s a channel for every LED linear tape width. Wider and deeper installations are enabled with our LED-CHL-XD and LED-CHL-XD-F aluminum architectural LED mounting channels.Included frosted lens enables a seamless linear light with no diode imaging.

Aluminum construction
Available in 48″ and 96″ lengths (depending on channel type)
Easy to install
Mounting channel for every GM LED Linear Tape

Ordering Information

Catalog No.	Length	Width	Height	Finish
LED-CHL	48″	.675″	.465″	Aluminum
LED-CHL-8	96″	.675″	.465″	Aluminum
LED-CHL-45	48″	.85″	.85″	Aluminum
LED-CHL-W	48″	1.019″	.457″	Aluminum
LED-CHL-W-8	96″	1.019″	.457″	Aluminum
LED-CHL-SLIM	48″	.70″	.23″	Aluminum
LED-CHL-45-1200	48″	1.18″	1.18″	Aluminum
LED-CHL-XD	48″	.98″	.88″	Aluminum
LED-CHL-XD-8	96″	.96″	.88″	Aluminum
LED-CHL-XD-F	48″	.90″	.785″	Aluminum
LED-CHL-XD-MD	48″	.75″	.62″	Aluminum
LED-CHL-XD-MD-B	48″	.75″	.62″	Black
LED-CHL-XD-MD-WH	48″	.75″	.62″	White
LED-CHL-XD-MD-F	48″	.75″	.55″	Aluminum
LED-CHL-XD-MD-F-B	48″	.75″	.55″	Black
LED-CHL-XD-MD-F-WH	48″	.75″	.55″	White
NOTE: All channels include snap-on frosted lenses. All channels may not accommodate all ribbon to ribbon and ribbon to power supply connections. Please locate connections outside of channel interior.

Accessories

Catalog No.	Description
LED-CHL-EC	Solid end caps (2) for LED-CHL
LED-CHL-AMC	Adjustable brackets (2) for LED-CHL
LED-CHL-MC	Mounting clips (2) for LED-CHL
LED-CHL-45-EC	Solid end caps (2) for LED-CHL-45
LED-CHL-45-MC	Mounting clips (2) for LED-CHL-45
LED-CHL-45-1200-EC	Solid end caps (2) for LED-CHL-45-1200
LED-CHL-45-1200-LENS	Frosted lens for LED-CHL-45-1200
LED-CHL-SLIM-BRACKETS	Mounting brackets (2) for LED-CHL-SLIM
LED-CHL-SLIM-EC	Solid end caps (2) for LED-CHL-SLIM
LED-CHL-W-AMC	Adjustable brackets (2) for LED-CHL-W
LED-CHL-W-EC	Solid end caps (2) for LED-CHL-W
LED-CHL-W-MC	Mounting clips (2) for LED-CHL-W
LED-CHL-XD-AMC	Adjustable brackets (2) for LED-CHL-XD
LED-CHL-XD-EC	Solid end caps with holes (2) for LED-CHL-XD
LED-CHL-XD-F-DC	Drywall mounting brackets (2) for LED-CHL-XD-F
LED-CHL-XD-F-EC	(1) solid end cap and (1) solid end cap with hole for LED-CHL-XD-F
LED-CHL-XD-F-MC	Solid mounting clips (2) for LED-CHL-XD-F
LED-CHL-XD-MD-EC	(1) solid end cap and (1) solid end cap with hole for LED-CHL-XD-MD
LED-CHL-XD-MD-AMC	Adjustable mounting clips (2) for LED-CHL-XD-MD
LED-CHL-XD-MD-F-DC	Drywall spring clips (2) for LED-CHL-XD-MD-F
LED-CHL-XD-MD-F-EC	(1) solid end cap and (1) solid end cap with hole for LED-CHL-XD-MD-F
