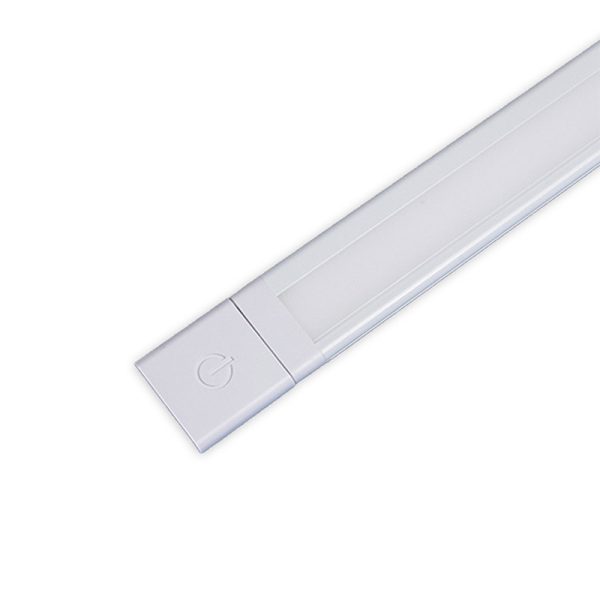

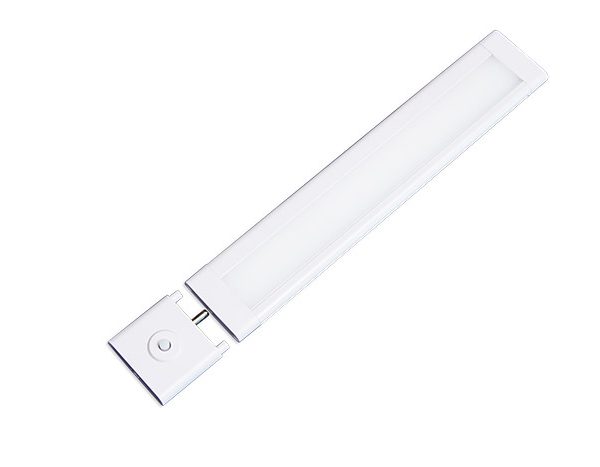

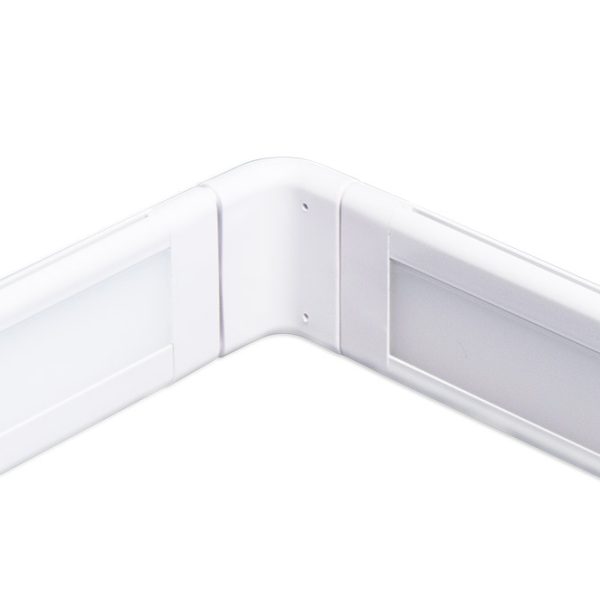

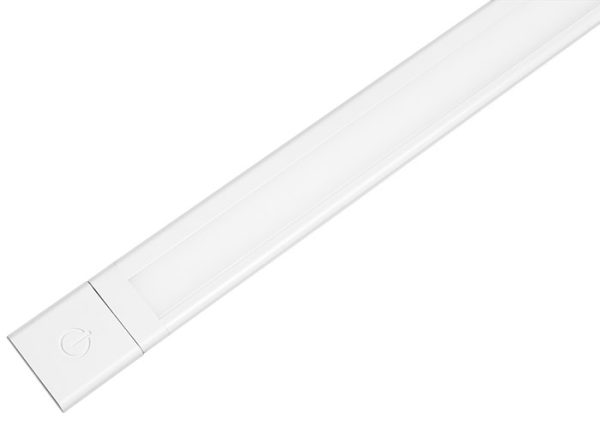

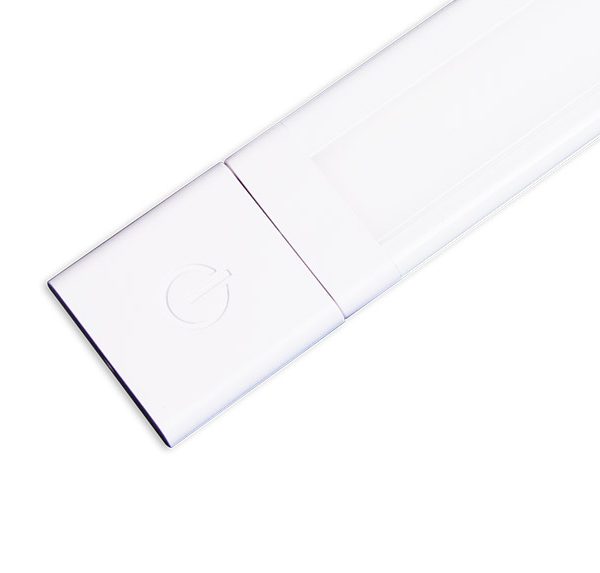

24VDC SlimEdge™ Modular Architectural Lightbar

Product Description

SlimEdge is a 24VDC architectural LED linear thin lightbar that is the next evolution in undercabinet lighting.  Using high-tech Edgelite technology – SlimEdge creates an even luminance while producing a gentle, soft light.  90+ CRI optics that present no diode imaging on polished surfaces.  Available in 8”, 16”, 24” or 32” in white or bronze.  Utilizing the wide array of connectors, SlimEdge can be configured to adapt to virtually any application.

  • Rigid modular edge lit lightbar

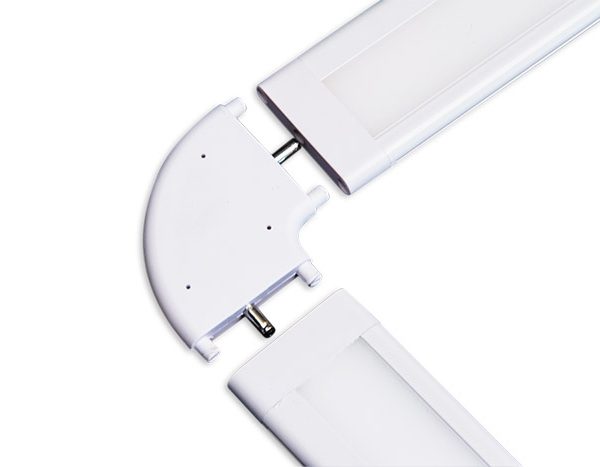

  • 0-90° with optional mounting clip
  • Mounting clips and screws included

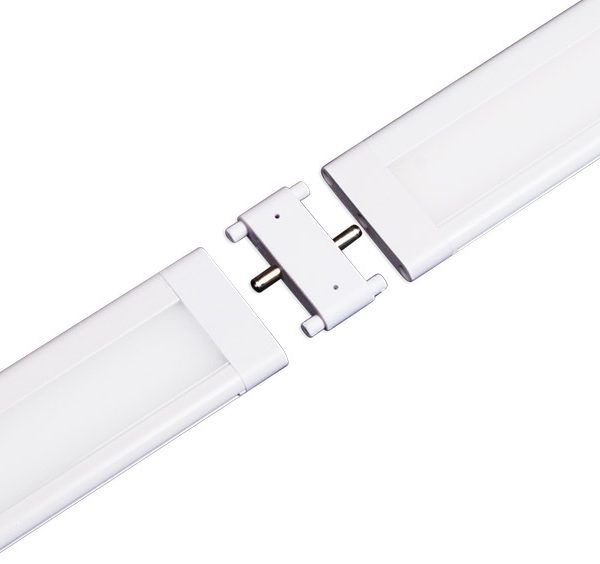

  • Units join securely together with modular connectors
  • Class 2 Maximum run on a given lead is 16′
  • 24VDC remote power supply required
  • Rated at 5W per foot
  • Edge-lit technology results in diode-free imaging on polished surfaces
  • 90+ CRI
  • 2700K, 3000K
  • UL
  • 5 year warranty



Category:

Technical Literature Downloads

  • SLIMEDGE SPEC SHEET
  • DPPS POWER SUPPLY SPEC SHEET

Instructions

  • Installation
