  • 120V RSD Fire Rated Selectable White Regressed Downlight

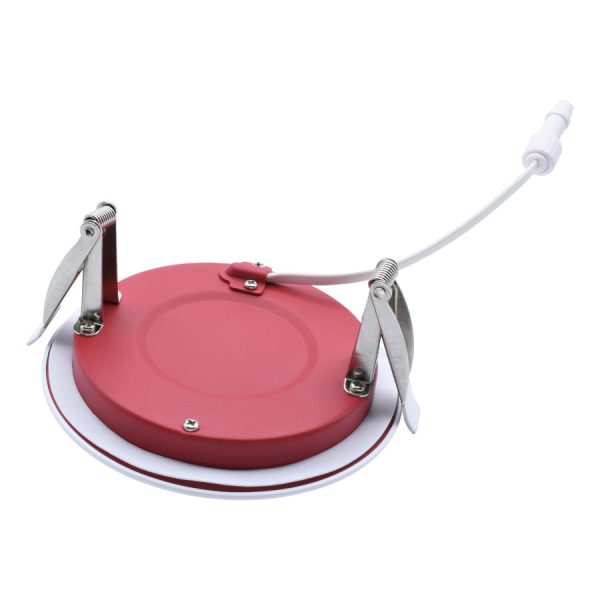

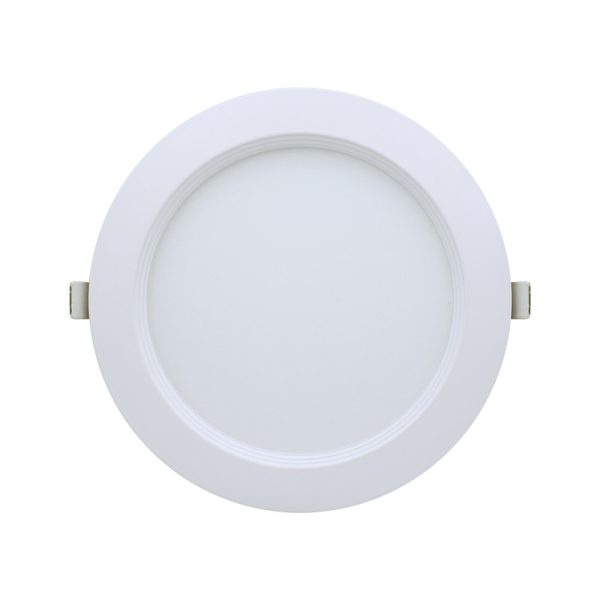

120V RSD Fire Rated Selectable White Regressed Downlight

Solid steel construction is fire-rated and can mount in 2x 5/8″ Type X Sheetrock. Easy to install using included power supply with integrated junction box and modular jacks. These 4″ and 6″ regressed downlights feature shallow mount designs along with Title 24/JA8 and Energy Star ratings.

  • This product has been tested to meet a 2-hour fire rating which complies with conditions of acceptability for UL 263, ASTM E119, CAN/ULC-S110
  • 5CCT value selector switch
  • Can mount in insulated ceilings up to 1.75″ thick
  • Edge-lit technology for diode-free illumination
  • Dimmable (Triac or ELV)
Category:
  • 120V RSD FR SPEC SHEET
  • INSTALLATION INSTRUCTIONS
  • Universal Mounting Plate Instructions
  • SALES SHEET
  • IES

Description

Ordering Information

Catalog No. Dimensions Color Wattage CRI Lumens in 3000K Finish
RSD-4-FR-TUN-WH 5-1/8″ Dia. Trim 5CCT: 2700K, 3000K, 3500K, 4000K, 5000K 12W 90+ 735lm White
RSD-6-FR-TUN-WH 6-7/8″ Dia. Trim 5CCT: 2700K, 3000K, 3500K, 4000K, 5000K 15W 90+ 975lm White

Accessories

Catalog No. Description
RSD-TUN-5FT-EXT 5’ extension cord for RSD Series Downlights
RSD-TUN-10FT-EXT 10’ extension cord for RSD Series Downlights
RSD-TUN-20FT-EXT 20’ extension cord for RSD Series Downlights
UNV-NCP New construction plate for all RSD Series Downlights
