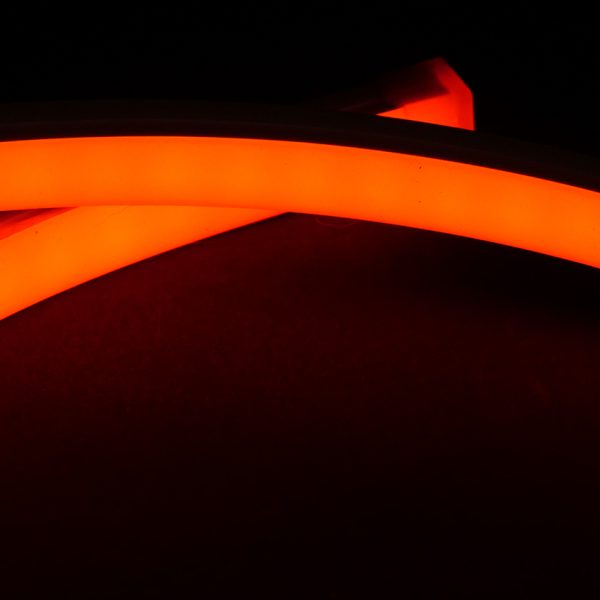

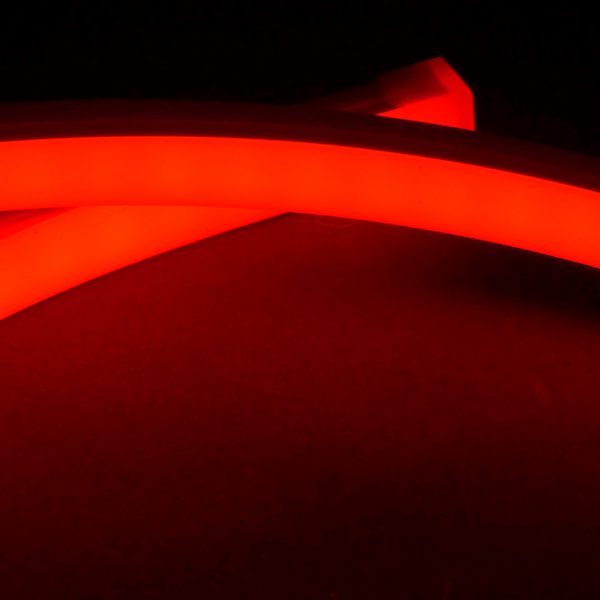

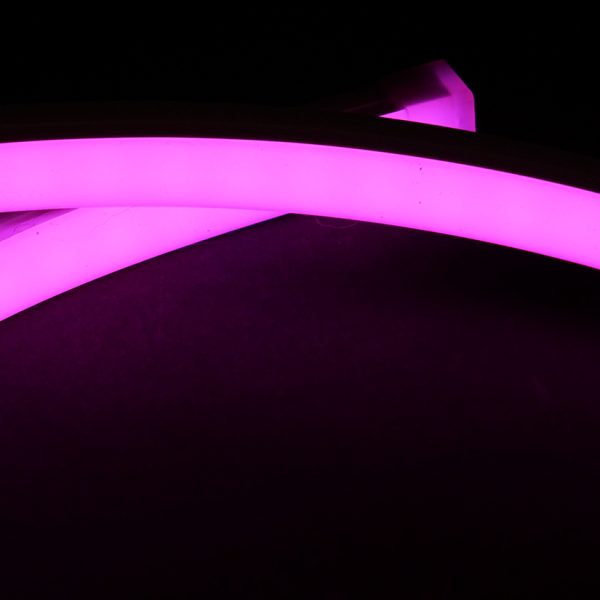

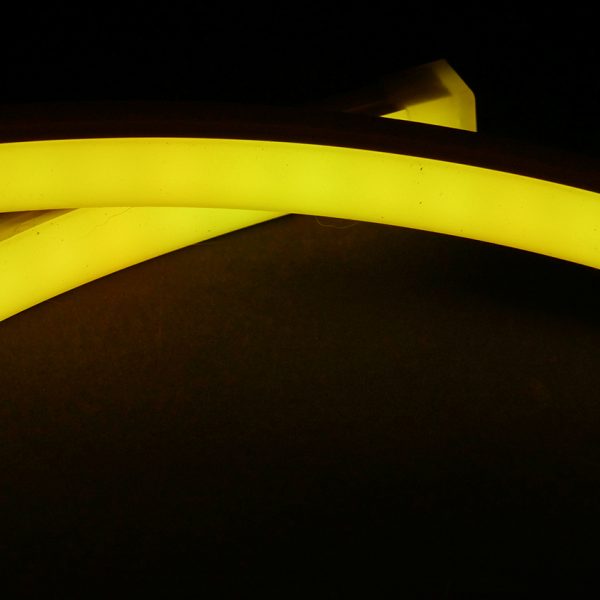

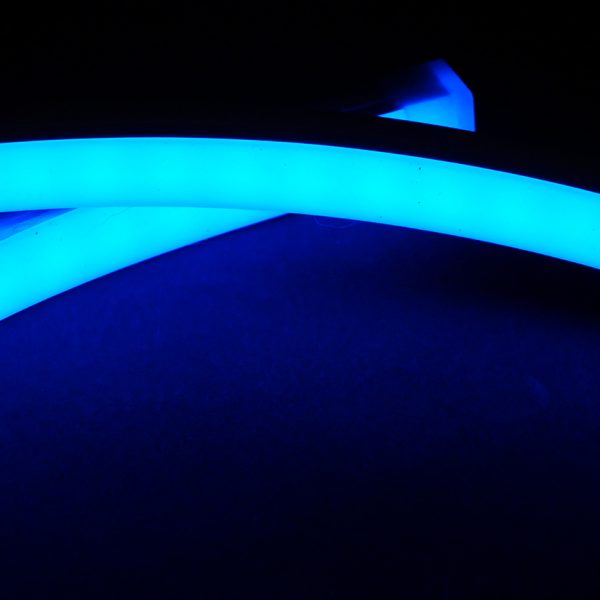

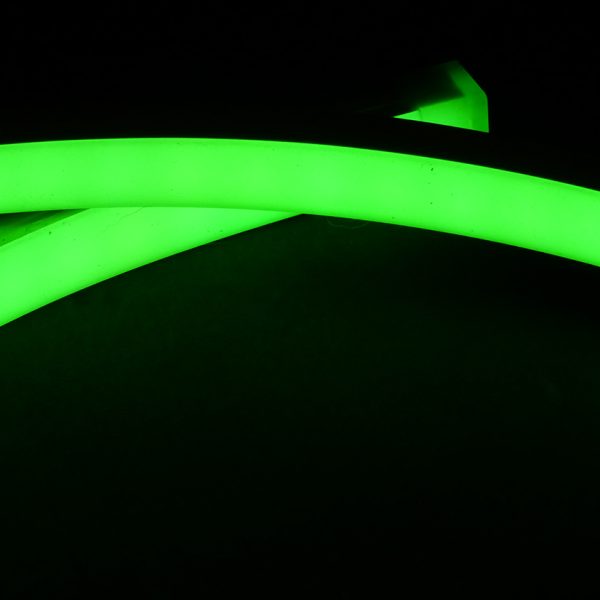

NeoVISION24™ RGBW TopFlex and SideFlex Neon Tape

A 24VDC RGBW, flexible linear ‘neon’ tape that is field cuttable. Designed for applications that requires a neon-like ultra-rich, saturated color with 3500K white. SideFlex enables horizontal bending and TopFlex enables vertical bending that conforms tape around curvilinear surfaces.

  • 24VDC operation
  • 4W per foot
  • RGB with 3500K white
  • Wet location – IP65
  • Tape encased in UV stable silicone (UV protected)
  • Controllable RGBW
  • Wireless control with LUXcontrol App and controller
  • Dimmable
  • 120° viewing angle
  • Maximum run: 16’-4”
  • Cut and cap only in 2.5-inch increments while retaining IP65
  • Mounting clips included (recommend use 1 per foot)



Category:
  • NeoVISION24™ RGBW Top and SideFlex SPEC SHEET
  • SALES SHEET
  • PHOTOMETRICS
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Length Wattage CRI White Color Temp. Max. Run
NV24S-4W-RGBW-16 16’-4” 4.3W / FT. 90+ 3500K 16’-4”
NV24T-4W-RGBW-16 16’-4” 4.3W / FT. 90+ 3500K 16’-4”
Kelvin temperature (color) ±100K. Every reel includes (1) NV24T-PF-EF (tape to power feed with 48”; of lead. 16’ reel includes (16) NV24T-MC-A mounting clips and screws. Operating temp.: -4° – 130°F.
LUXcontrol CONTROLLERS
MODEL DESCRIPTION
SHWC-RGBW Smart 2.4 GHz WiFi Controller, Standard RGBW 12V/24V Low Voltage, 4-Channel / 5-Wire
SHWC-RGBW-RPT Universal Smart Power Repeater

Accessories

Catalog No. Description
NV24S-CHL-A4 Aluminum channel – 4 ft. length
NV24S-CHL-A8 Aluminum channel – 8 ft. length
NV24S-FLEX-CHL Flexible mounting channel – 39.5”
NV24S-MC-A Aluminum mounting clip (set of 20)
NV24-CT Tape cutting tool (works for both TopFlex and SideFlex)
NV24S-EC End cap
NV24T-CHL-A4 Aluminum channel – 4 ft. length
NV24T-CHL-A8 Aluminum channel – 8 ft. length
NV24T-FLEX-CHL Flexible mounting channel – 39.5”
NV24T-MC-A Aluminum mounting clip (set of 20)
NV24-CT Tape cutting tool (works for both TopFlex and SideFlex)
NV24T-EC End cap
