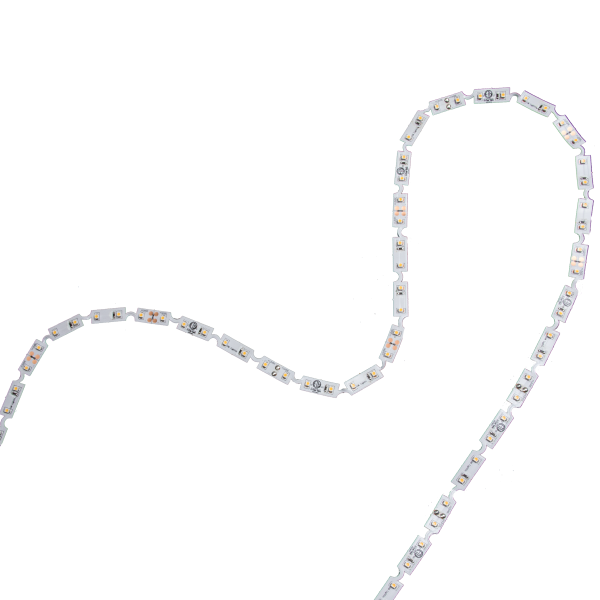

LTR-S Spec Series Twist-Task Tape

A high output, 90+ CRI flexible LED linear tape that is segmented, enabling intricate mounting that follows complex shapes and forms.  3M adhesive mounting back.  Available in a 16′-4″ (5M) reel.

  • 12VDC
  • 2.2W / ft.
  • 90+ CRI
  • 2700K, 3000K, 3500K, 4000K
  • Remote control with GM’s LUXcontrol™ App and controllers
  • Dry location
  • Cuttable every 4″
  • Custom lengths available – consult factory
  • 120° viewing angle
  • 3M adhesive back
  • Maximum run on a given lead is 16′-4″
  • Includes Sure-Tite connectors
  • UL certification
  • 5 year warranty when paired with GM power supply



Category:
  • LTR-S 12VDC TWIST-TASK TAPE SPEC SHEET
  • CONNECTORS SPEC SHEET
  • PHOTOMETRICS
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Reel Length Lumens/Foot Watts/Foot CRI Color Temp. Max. Run
LTR-S-TW-12V-2.2W-27K-16 16′-4″ (5M) 183 2.2W 90+ 2700K 16′-4″
LTR-S-TW-12V-2.2W-30K-16 16′-4″ (5M) 192 2.2W 90+ 3000K 16′-4″
LTR-S-TW-12V-2.2W-35K-16 16′-4″ (5M) 199 2.2W 90+ 3500K 16′-4″
LTR-S-TW-12V-2.2W-40K-16 16′-4″ (5M) 201 2.2W 95+ 4000K 16′-4″
Kelvin temp. =/-100K.  16′-4″ reel includes 24″ lead affixed to tape.  16′-4″ reel includes (3) ESTW-60 Sure-Time connectors.
LUXcontrol CONTROLLERS
MODEL DESCRIPTION
SHWC Smart 2.4 GHz WiFi Controller, Standard 12V/24V Low Voltage, 1-Channel / 2-Wire
SHWC-RGBW-RPT Universal Smart Power Repeater

Accessories

Catalog No. Description
ESTC-1 Sure-Tite Tape to Tape Connector
STC-90 Sure-Tite 90° Tape to Tape Connector
ESTLK-60 Sure-Tite 60″ Adjustable Tape to Tape Connector
ESTW-60 Sure-Tite 60″ Adjustable Tape to Power Connector
ESTW-CO Sure-Tite Tape to Power Supply Connector (no wire)
