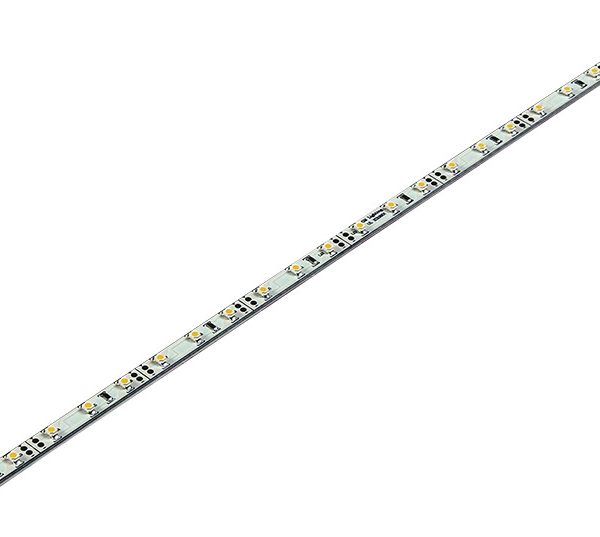

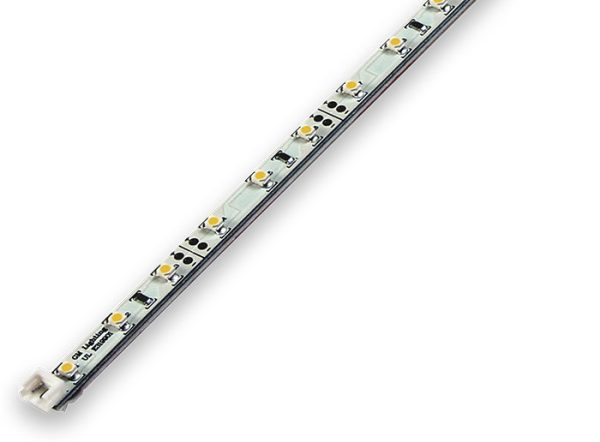

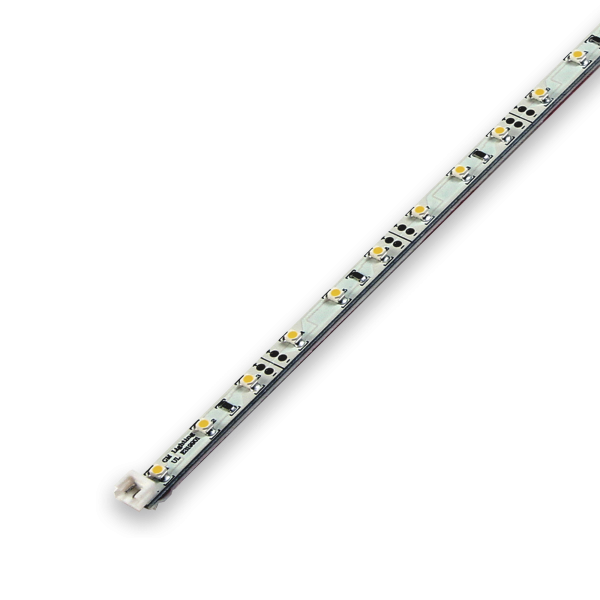

LTB 12VDC Rigid High Output LED Linear Lightbar

High output LED lighting for superior lumen performance for a wide variety of lighting applications. GM Lighting’s LTB Rigid High Output LED Linear Lightbar Series provides a warm 3500K light source that is easily configurable by utilizing GM Lighting’s flexible lightbar to lightbar connectors (below). The LTB Series fixtures are extremely easy to mount with the attached 3M double stick padded mounting tape on the back of each lightbar.

  • Rated at 2W (8”) and 4W (16”)
  • 3500K
  • 120° viewing angle
  • Dimmable
  • Maximum run: 20’
  • Mounts with 3M VHB™ double stick tape
  • Flexible lightbar to lightbar and lightbar to power supply connectors available (see below) • Available in 8” and 16” nominal lengths (see ordering information for actual length)
  • ETL listed
  • 5 year warranty when used with GM power supplies
Category:
  • LTB SERIES SPEC SHEET
  • PHOTOMETRICS
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Color Wattage Lumens/Bar Length
LTB-8 3500K 2W / bar 132/bar 7-3/4″
LTB-16 3500K 4W / bar 264/bar 15-1/4″

Accessories

Catalog No. Description
LTBC-3 3″ Flexible Lightbar to Lightbar Connector
LTBC-12 12″ Flexible Lightbar to Lightbar Connector
LTBC-24 24″ Flexible Lightbar to Lightbar Connector
LTBC-36 36″ Flexible Lightbar to Lightbar Connector
LTBC-60 60″ Flexible Lightbar to Lightbar Connector
LTBPC-6 6″ Lightbar to Power Supply Connector
LTBPC-24 24″ Lightbar to Power Supply Connector
LTBPC-48 48″ Lightbar to Power Supply Connector
LTBPC-60 60″ Lightbar to Power Supply Connector
LTMC (Pair) Lightbar Mounting Clips with 4 Screws (optional)
GMSB-W Splice Box – White – 2″L x 1″W x 5/8″D
GMSB-B Splice Box – Black – 2″L x 1″W x 5/8″D
