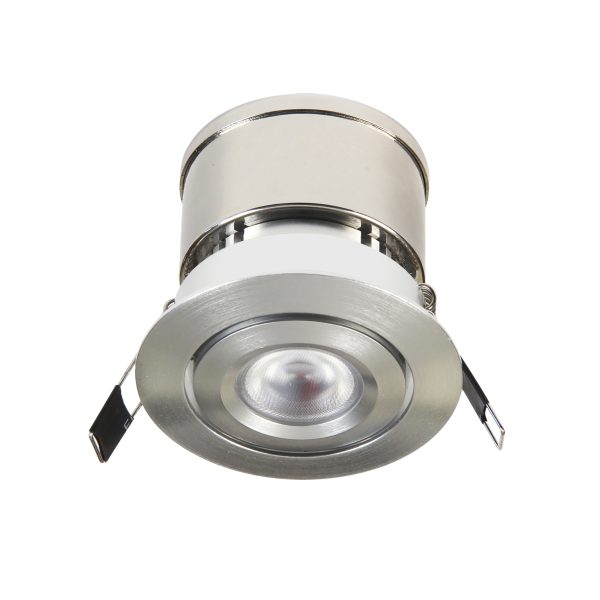

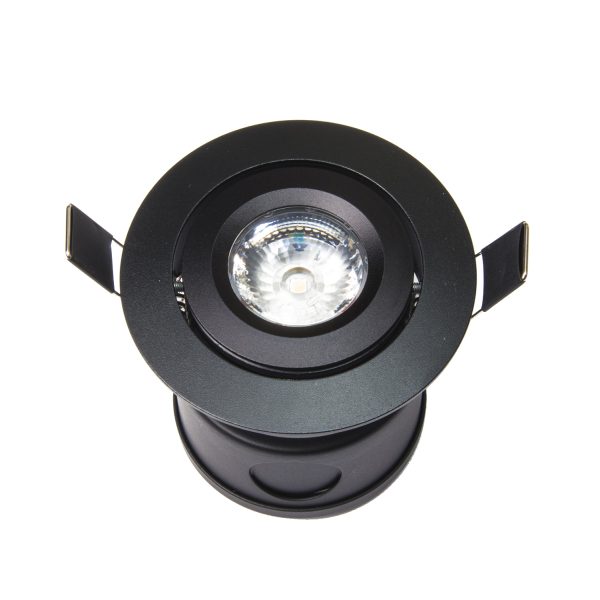

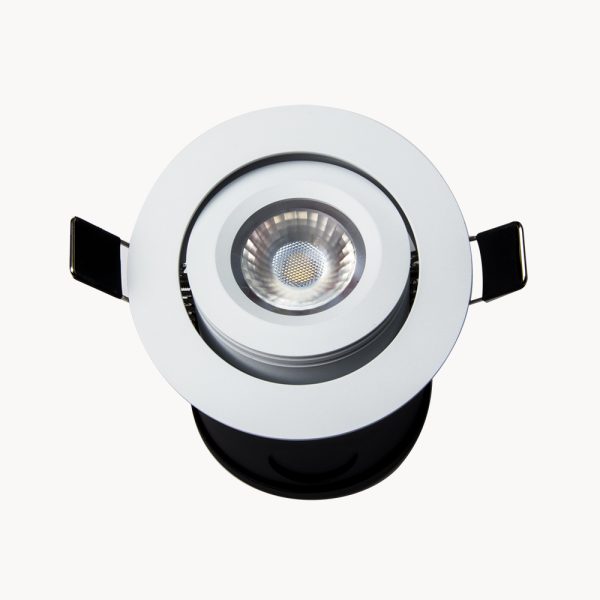

GMR6 Series 120V 6W IC and Damp Location Rated Mini Downlight

GM Lighting’s 120VAC 6W IC and Damp Location Rated Mini LED Adjustable Shallow Recessed Downlight packs a lot of performance in a compact, easy to install dimmable luminaire.  3-1/4″ O.D. optional trim ring included with each fixture.

  • 120VAC
  • Multiple Beam Spreads: 24°, 38°, 55°
  • 15° Adjustability
  • Dimmable
  • Up to 500 Lumens with 90+ CRI
  • 6W @ 3000K



Category:
  • GMR6 SPEC SHEET
  • PHOTOMETRICS
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Wattage Beam Lumens CRI Dimensions Color Finish
GMR6-120V-IC-SP-W 6W 24° 500 90+ 3-1/4″Dia. x 3-3/4″D 3000K White
GMR6-120V-IC-FL-W 6W 38° 455 90+ 3-1/4″Dia. x 3-3/4″D 3000K White
GMR6-120V-IC-WFL-W 6W 55° 455 90+ 3-1/4″Dia. x 3-3/4″D 3000K White
GMR6-120V-IC-SP-B 6W 24° 500 90+ 3-1/4″Dia. x 3-3/4″D 3000K Black
GMR6-120V-IC-FL-B 6W 38° 455 90+ 3-1/4″Dia. x 3-3/4″D 3000K Black
GMR6-120V-IC-WFL-B 6W 55° 455 90+ 3-1/4″Dia. x 3-3/4″D 3000K Black
GMR6-120V-IC-SP-BA 6W 24° 500 90+ 3-1/4″Dia. x 3-3/4″D 3000K Brushed Aluminum
GMR6-120V-IC-FL-BA 6W 38° 455 90+ 3-1/4″Dia. x 3-3/4″D 3000K Brushed Aluminum
GMR6-120V-IC-WFL-BA 6W 55° 467 90+ 3-1/4″Dia. x 3-3/4″D 3000K Brushed Aluminum
