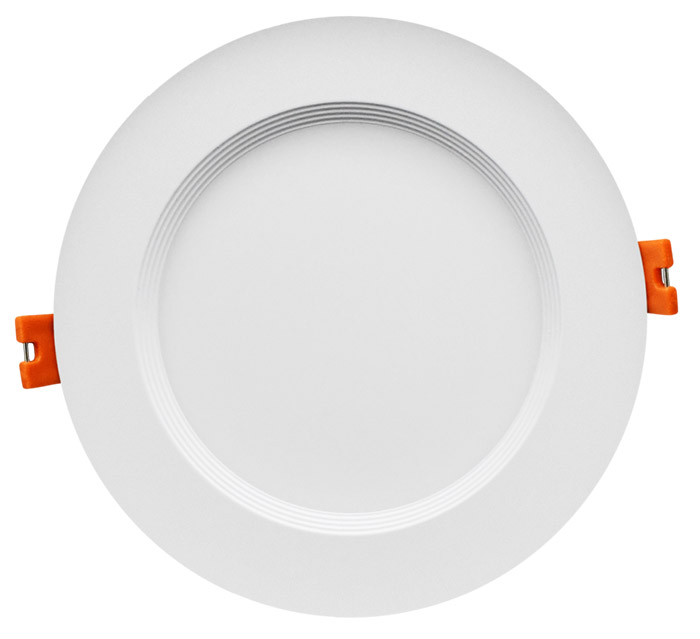

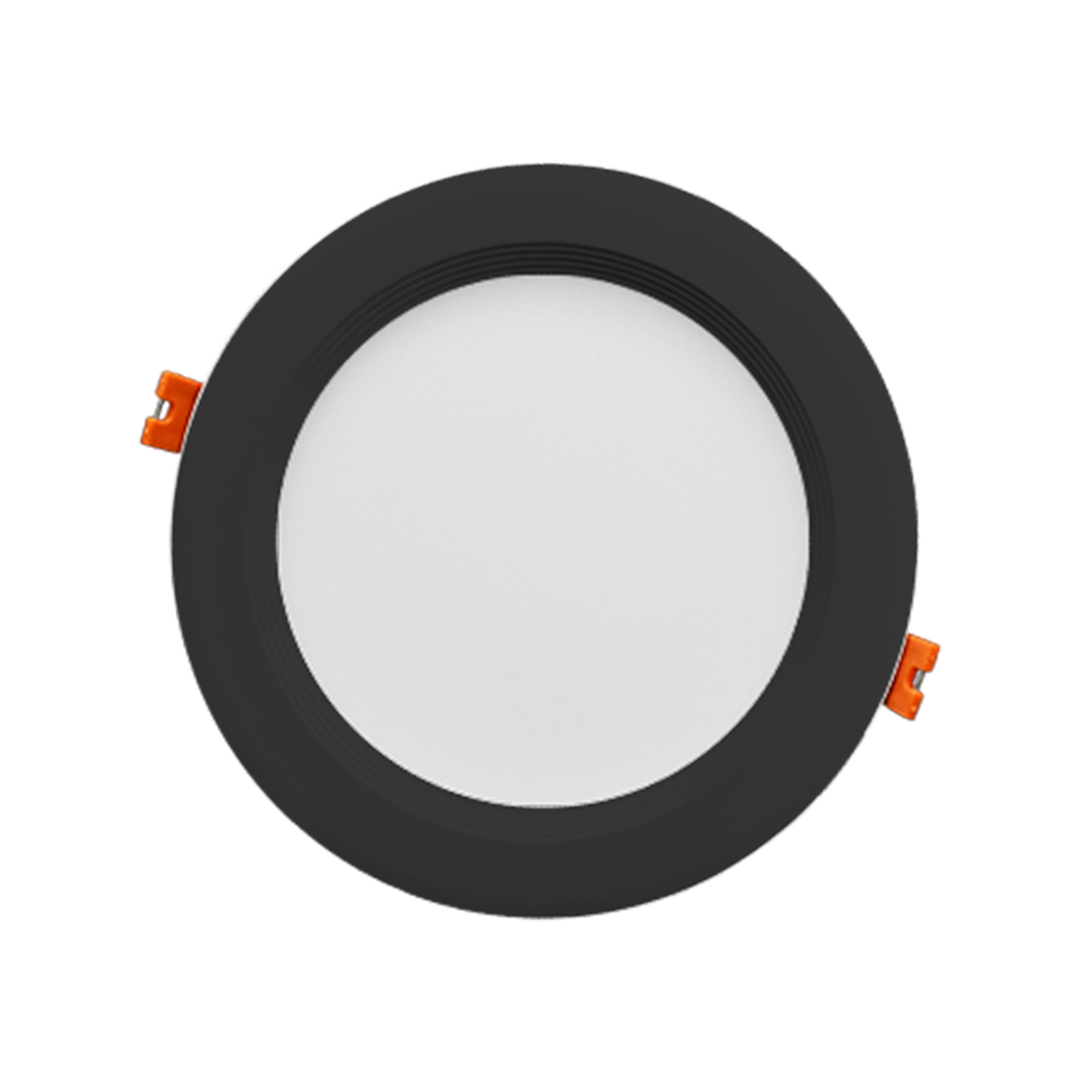

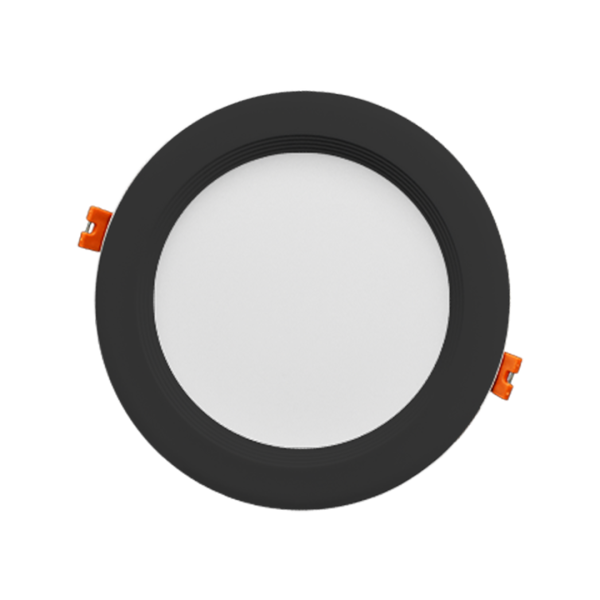

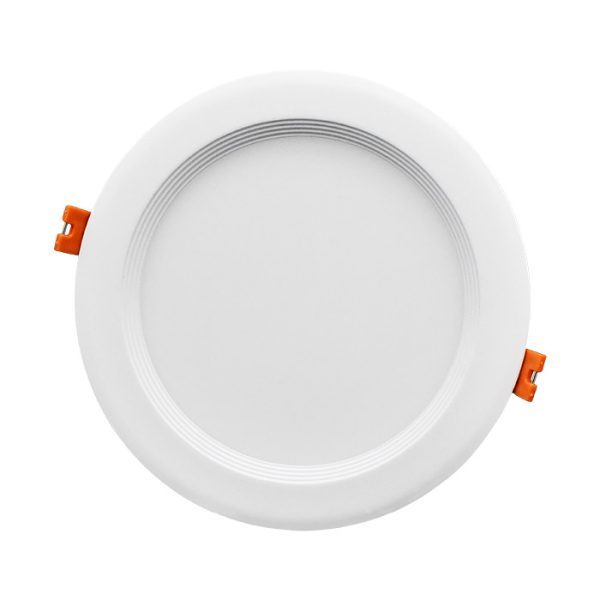

120V RSD Switchable White Regressed Slim Downlight

Now available with adjustable kelvin temperature (2700K, 3000K, 4000K) the RSD is an easy to install recessed mount luminaire with an integral junction box that is connected via a modular jack.  These 4″, 6″ and 8″ shallow mount, regressed downlight features superior optics along with an Energy Star rating in a streamlined, shallow mount design.

  • 120V
  • Switchable – 2700K, 3000K, 4000K
  • Dimmable (Triac)
  • Shallow Mount
  • 90+ CRI
  • IP54 Wet Location
  • 120° Beam Angle
  • Edge-Lit Technology for diode-free illumination
  • Title 24, Energy Star
  • 5 year warranty
Category:
  • 120V RSD SPEC SHEET
  • PHOTOMETRICS
  • INSTALLATION INSTRUCTIONS
  • Universal Mounting Plate Instructions

Description

Ordering Information

Catalog No. Dimensions Color Wattage CRI Lumens Finish
RSD-4-TUN-WH 5-1/8″ Dia. Trim 2700K, 3000K, 4000K 9W 90+ 516, 579, 570 White
RSD-6-TUN-WH 6-7/8″ Dia. Trim 2700K, 3000K, 4000K 12W 90+ 827, 933, 891 White
RSD-8-TUN-WH 8-1/2″ Dia. Trim 2700K, 3000K, 4000K 15W 90+ 900, 925, 950 White

Accessories

Catalog No. Description
RSD-TUN-5FT-EXT 5’ extension cord for RSD Series Downlights
RSD-TUN-10FT-EXT 10’ extension cord for RSD Series Downlights
RSD-TUN-20FT-EXT 20’ extension cord for RSD Series Downlights
UNV-NCP New construction plate for all RSD Series Downlights
