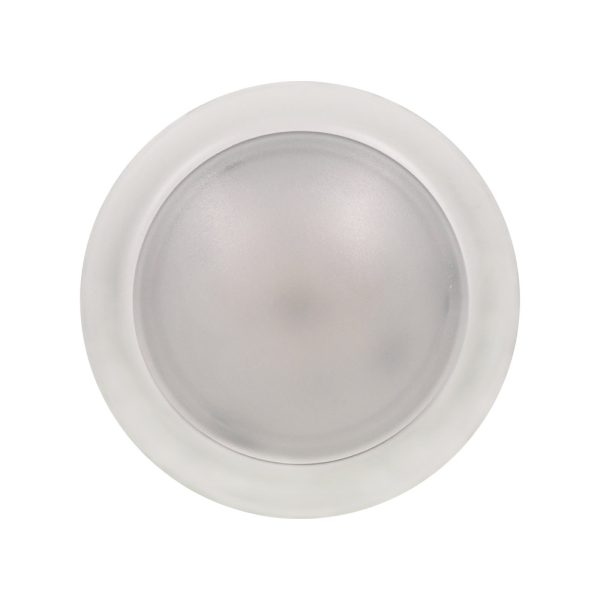

120V R6 Driverless LED Surface Mount 6in Downlight

A closet rated, wet location and Title 24 approved circular surface mount downlight that features white powder coat steel housing with white opal lens and full gasketing. Mounts to standard fixture box or with recessed R6-RKT mounting kit, ordered separately.

  • 120V operation
  • 15W
  • Wet location
  • White or Brushed Nickel finishes
  • 27K, 30K or 40K color temp.
  • 90+ CRI
  • Dimmable (TRIAC)
  • Full foam gasketing
  • Mounts to a standard J-Box or 6” recessed downlight (requires R6-RKT mounting kit)
  • 3-year warranty
Category:
  • R6 SPEC SHEET
  • INSTALLATION INSTRUCTIONS

Description

Ordering Information

Catalog No. Dimensions Color Wattage CRI Lumens Finish
R6-2790-WH 7-3/8″ Dia. x 1-1/4″D 2700K 15W 90+ 830 White
R6-3090-WH 7-3/8″ Dia. x 1-1/4″D 3000K 15W 90+ 870 White
R6-4090-WH 7-3/8″ Dia. x 1-1/4″D 4000K 15W 90+ 900 White
R6-2790-BN 7-3/8″ Dia. x 1-1/4″D 2700K 15W 90+ 830 Brushed Nickel
R6-3090-BN 7-3/8″ Dia. x 1-1/4″D 3000K 15W 90+ 870 Brushed Nickel
R6-4090-BN 7-3/8″ Dia. x 1-1/4″D 4000K 15W 90+ 900 Brushed Nickel

Accessories

Catalog No. Description
R6-RKT Retrofit kit for R6 fixture
