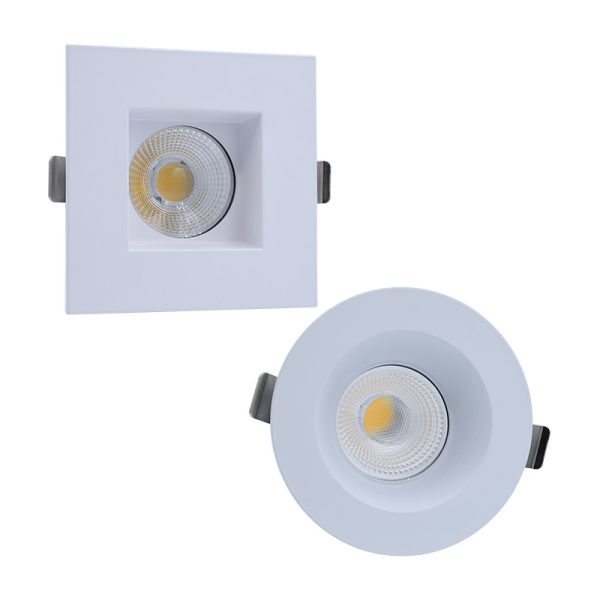

120V MicroTask4 High Lumen Recessed LED Downlight

This MicroTask 4 “HL” offers a high lumen output in a very versatile mid-sized, downlight. Excellent color rendition with a smooth, 38° or 60° beam spread puts the best light into your application. Select a housing and 1 of 8 trim styles and colors to configure a winning combination. A power supply with integrated junction box simplifies installation.

  • Solid construction with aluminum housing and trim
  • Acrylic lens for clarity and high efficiency
  • 18W, 120VAC
  • 38° or 60° beam angles
  • 5CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
  • Snap-in spring clips installation
  • IC rated for airtight installations
  • LUXcontrol App compatible when installed with SHWD
  • Title 24, Energy Star qualifies for efficient and flicker free operation
  • High lumens for larger spaces
Category:
  • MicroTask4 High Lumen SPEC SHEET
  • INSTALLATION INSTRUCTIONS
  • Universal Mounting Plate Instructions
  • SALES SHEET
  • IES

Description

Ordering Information – Select light engine and trim to build a luminaire

1. Select Light Engine

Catalog No. Description CRI Color Temp. Lumens in 3000K
MDL-4HFL-HL-5CCT 4″ Round Regressed 38° High Lumen 90+ 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K 1260lm (black), 1371lm (white)
MDL-4HWFL-HL-5CCT 4″ Round Regressed 60° High Lumen 90+ 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K 1282lm (black), 1329lm (white)

2. Select Trim

Catalog No. Description

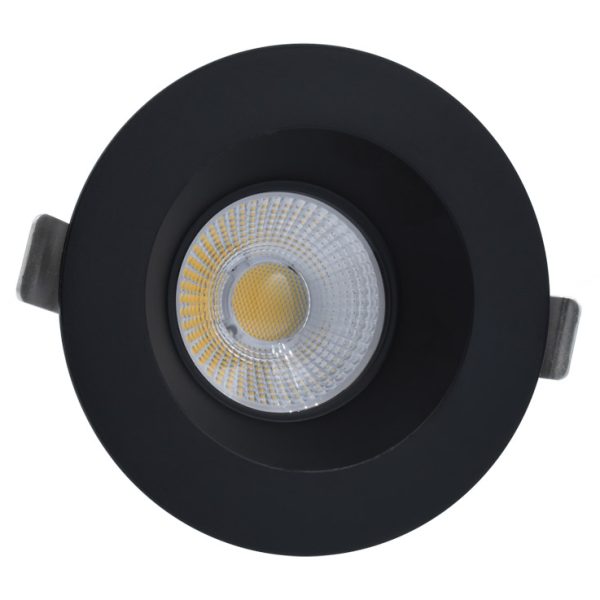

MDL-4R-TRSM-BK Black Round Smooth
MDL-4R-TRST-BK Black Round Stepped

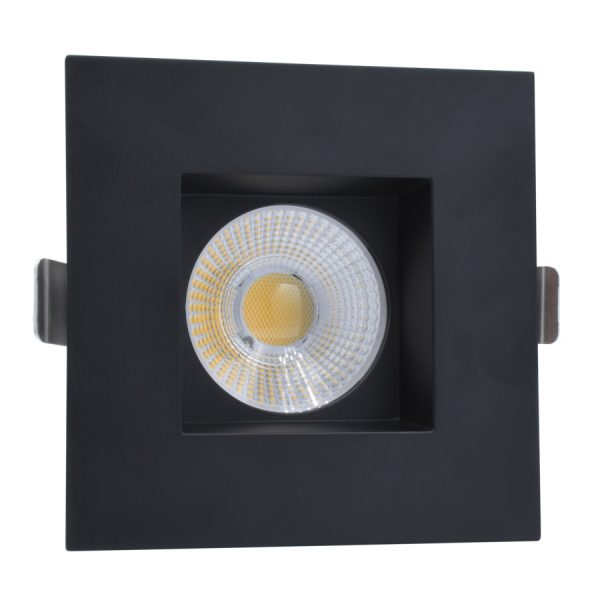

MDL-4S-TRSM-BK Black Square Smooth
MDL-4S-TRST-BK Black Square Stepped

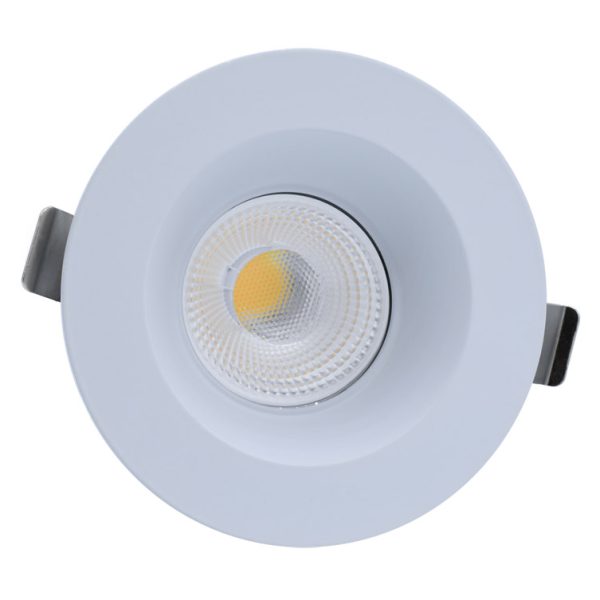

MDL-4R-TRSM-WH White Round Smooth
MDL-4R-TRST-WH White Round Stepped

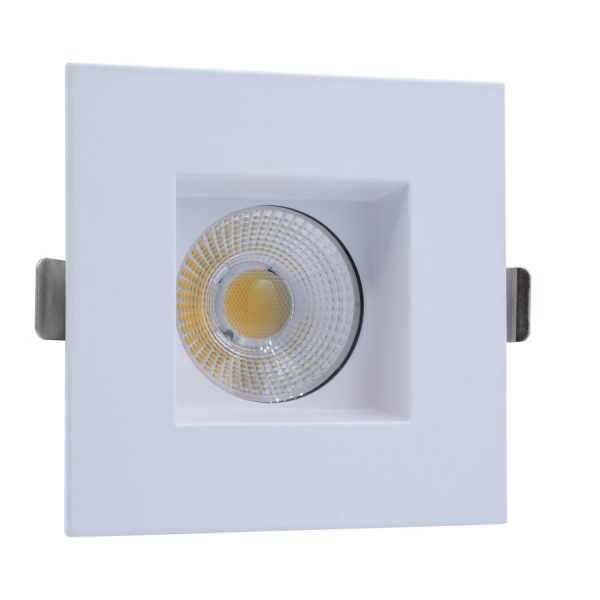

MDL-4S-TRSM-WH White Square Smooth
MDL-4S-TRST-WH White Square Stepped
