120V MicroTask4 Gimbal Rotatable Recessed LED Downlight

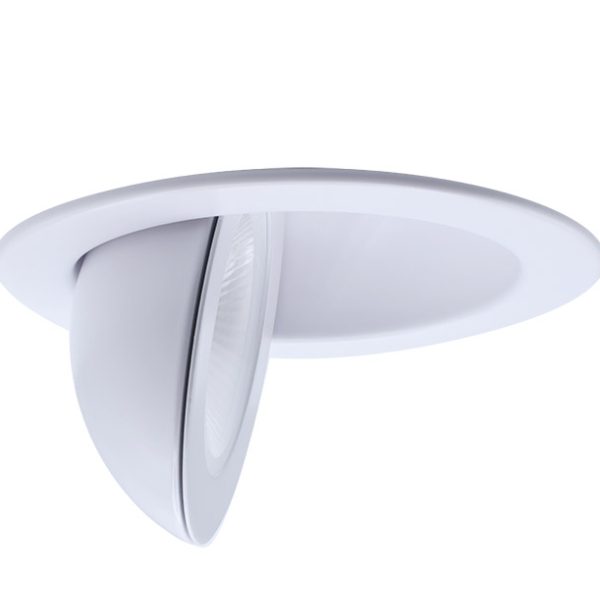

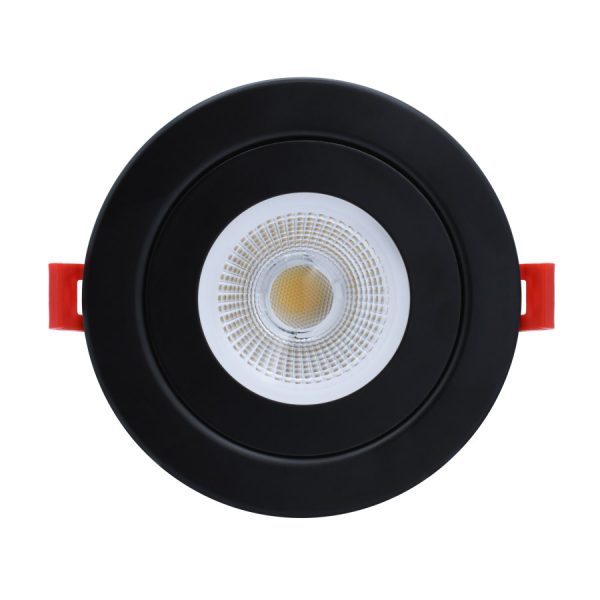

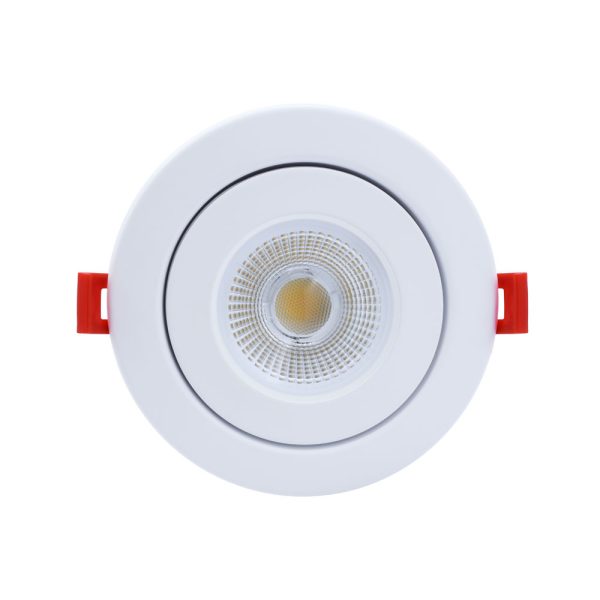

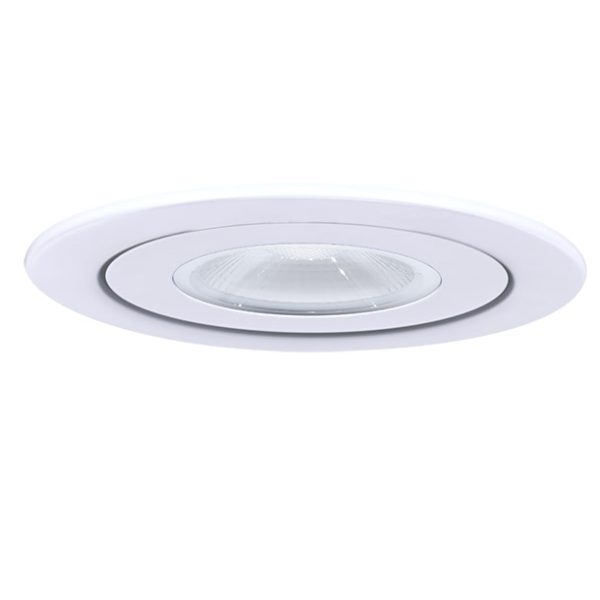

This Gimbal downlight features a rotatable spotlight that is aimable from low to high angles for wall accent applications. Excellent color rendition with nominal 4″ round trim has low glare for visual comfort. Title 24 certification and IC rating. Fixtures feature a power supply with integrated junction box. Easy snap-in installation with versatile CCT options in one unit.

  • Adjustable gimbal (360° rotation, 0° to 80° tilt)
  • Dimmable (Triac, ELV)
  • 120VAC, 60Hz
  • 12W
  • 5CCT selection switch: 2700K, 3000K, 3500K, 4000K, 5000K
  • LUXcontrol App compatible when installed with SHWD
  • Snap-in spring clip installation
Category:
  • MicroTask4 Gimbal SPEC SHEET
  • INSTALLATION INSTRUCTIONS
  • Universal Mounting Plate Instructions
  • SALES SHEET
  • IES

Description

Ordering Information

Catalog No. Description CRI Color Temp. Lumens in 3000K Finish
MDL-4GR-5CCT-WH 4″ Round Regressed 90+ 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K 905lm White
MDL-4GR-5CCT-BK 4″ Round Regressed 90+ 5CCT: 2700K / 3000K / 3500K / 4000K / 5000K 795lm Black

Accessories

Catalog No. Description
RSD-TUN-5FT-EXT 5’ extension cord for MDL Series Downlights
RSD-TUN-10FT-EXT 10’ extension cord for MDL Series Downlights
RSD-TUN-20FT-EXT 20’ extension cord for MDL Series Downlights
UNV-NCP New construction plate for all MDL Series Downlights
SHWD Smart 2.4 WiFi Dimmer, 120V, White (with LUX App)
