  • 120V MicroTask3 Mini IC Rated Recessed LED Downlight

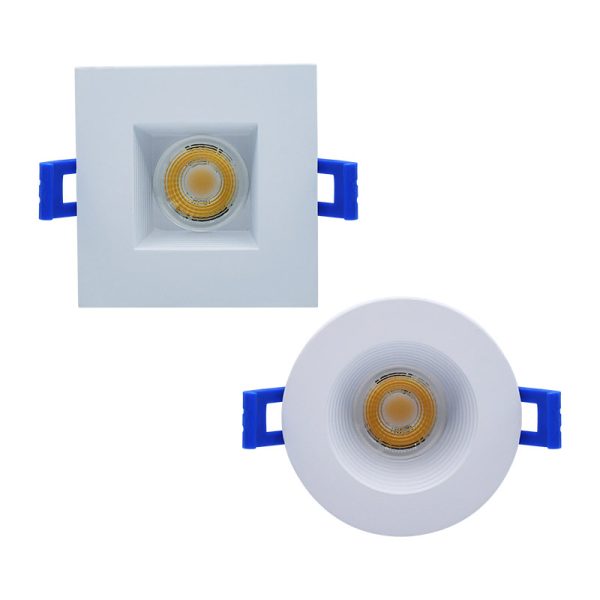

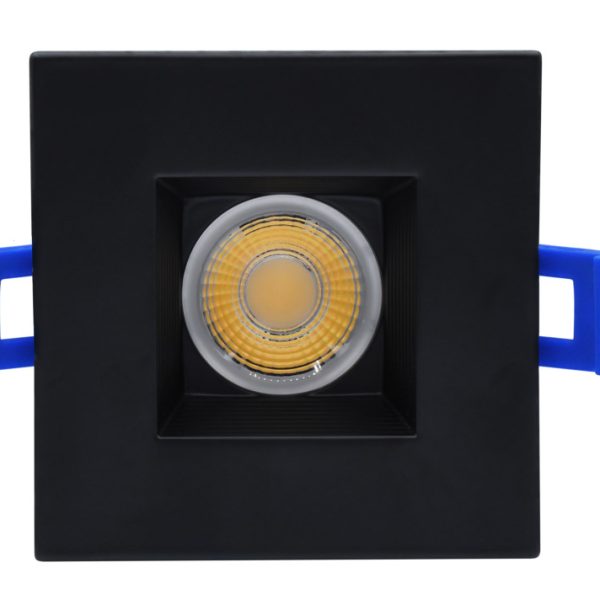

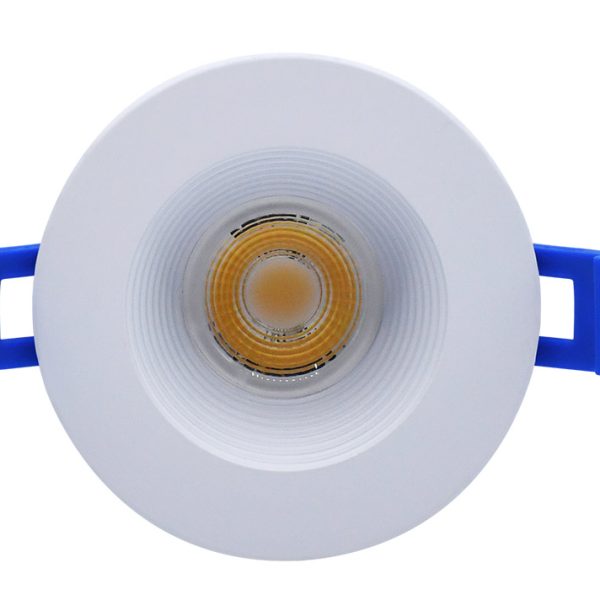

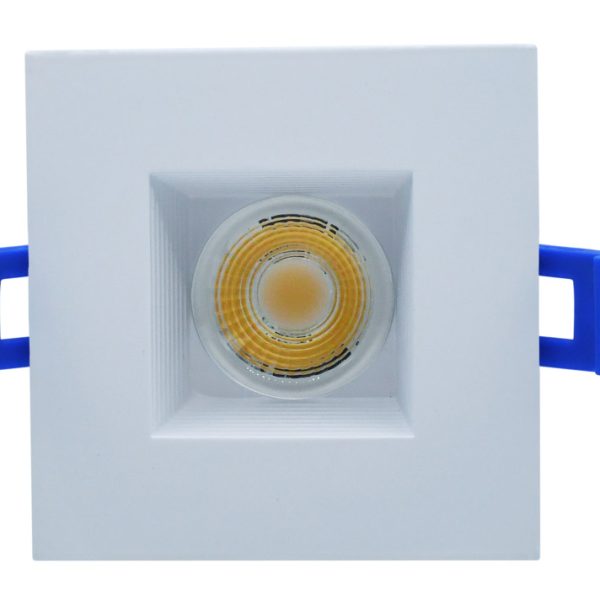

120V MicroTask3 Mini IC Rated Recessed LED Downlight

Excellent color rendition and high lumens in a 3” mini, IC rated, damp location, deep regressed round, square and round adjustable trim downlight that features an inline junction box connected by a modular twist connector.  Perfect for any application.  Available in 2700K or 3000K color temp.  White semi-gloss finish.

MicroTask Round Adjustable is a 360° rotation, 30° adjustability downlight that enables you to put the beam where you want it.  Either as a wall-wash or to focus a 38° beam angle on sculpture or objets d’ art.

  • 120V
  • 2700K, 3000K
  • Dimmable (Triac)
  • 3-3/8″ dia. x 1-1/2″ depth (round and round adjustable trims)
  • 3-1/2″ sq. x 2-1/2″ depth (square trim)
  • IC rated
  • In-line junction box connected by 12″ TwistLock cable
  • Snap-in spring clips installation
  • Title 24 and Energy Star
  • Suitable for damp location
  • 5 year warranty



  • MicroTask Round Adjustable SPEC SHEET
  • MicroTask Round/Square SPEC SHEET
  • INSTALLATION INSTRUCTIONS
  • Universal Mounting Plate Instructions

Description

Ordering Information

Catalog No. Description Trim Dimensions CRI Color Temp. Lumens Finish
MDL-3R-27-WH Round Regressed 3-3/8″ dia. x 1-1/2″ depth 90+ 2700K 545 White
MDL-3R-30-WH Round Regressed 3-3/8″ dia. x 1-1/2″ depth 90+ 3000K 550 White
MDL-3S-27-WH Square Regressed 3-1/2″ sq. x 2-1/2″ depth 90+ 2700K 545 White
MDL-3S-30-WH Square Regressed 3-1/2″ sq. x 2-1/2″ depth 90+ 3000K 550 White
MDL-3AR-27-WH Round Adjustable 3-3/8″ dia. x 1-1/2″ depth 90+ 2700K 545 White
MDL-3AR-30-WH Round Adjustable 3-3/8″ dia. x 1-1/2″ depth 90+ 3000K 550 White

Accessories

Catalog No. Description
MDL-5FT-EXT 5’ extension cord for MDL Series Downlights
MDL-10FT-EXT 10’ extension cord for MDL Series Downlights
MDL-20FT-EXT 20’ extension cord for MDL Series Downlights
UNV-NCP New construction plate for all MDL Series Downlights
