Wall switches usually have one job: turn the lights on and off. SwitchLD™ Gen2 didn’t get that memo.
SwitchLD Gen2 combines an LED power supply and wall dimmer in one compact device, delivering reliable power and smooth dimming directly from that familiar wall position – the one with all the fingerprints. Available for compatible 12VDC and 24VDC LED lighting, the SwitchLD family includes both single-color and tunable-CCT models.
For electrical contractors, lighting professionals and homeowners, that means fewer components, easier installation and one less compatibility problem hiding behind the wall.

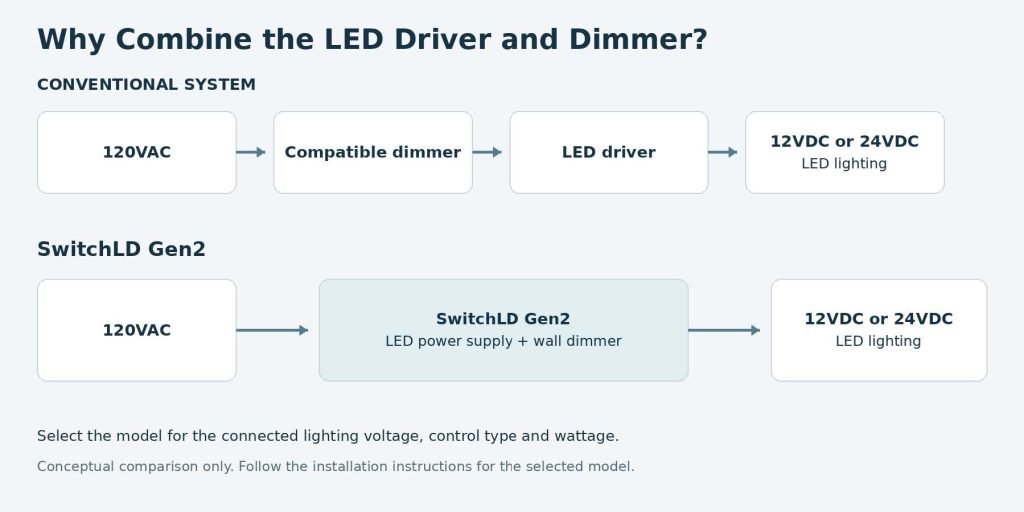

Why Combine the LED Driver and Dimmer?
A conventional low-voltage LED lighting system requires both a driver and a compatible dimmer.
The driver converts the building’s 120VAC current to the 12VDC or 24VDC power required by the LED lighting. The dimmer regulates the light output. Although that arrangement sounds straightforward, matching the two components has frustrated electrical contractors and DIY homeowners since Edison.
An incompatible driver and dimmer combination may produce flickering, buzzing, limited dimming, delayed response or lights that abruptly shut off at lower levels.
SwitchLD Gen2 eliminates that uncertainty by integrating the driver and dimmer into one coordinated wall control. Because the power supply and dimming electronics are designed to work together, installers no longer must pair separate components and hope they communicate properly.
It’s a wall switch with fewer opportunities for drama (and lighting already provides plenty of that).
One Wall Control, Multiple Functions
Depending on the selected model, SwitchLD Gen2 performs up to three important functions:
Single-color models provide convenient on/off operation and deep dimming. Tunable-CCT versions add control over color temperature, allowing users to move between warmer and cooler light levels.

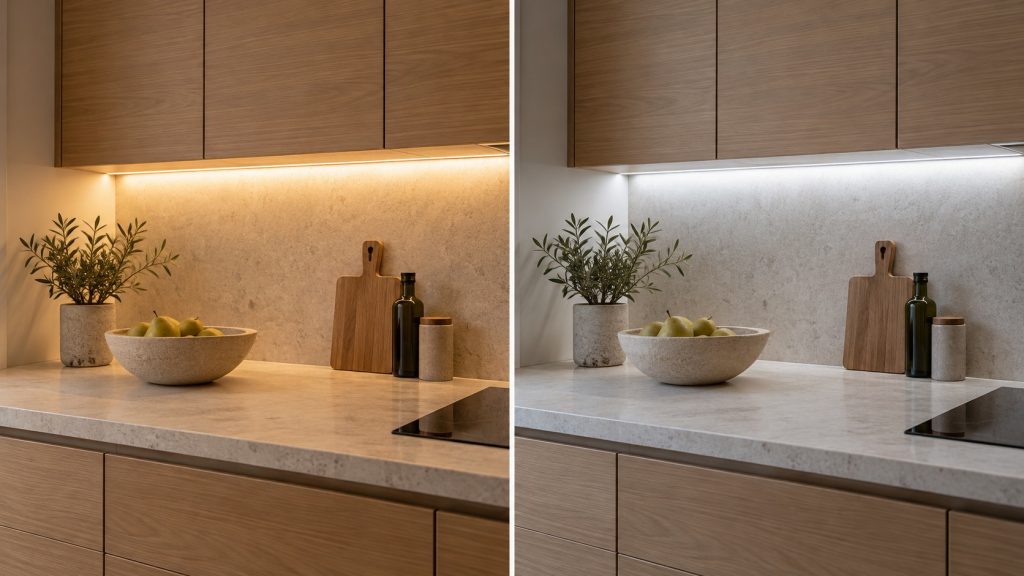

Cooler white light can provide clean, alert illumination for food preparation, detailed work or daytime activity. Warmer light can create a softer, more relaxing atmosphere for evening use. Instead of committing a space to one fixed color temperature, tunable-white lighting allows it to adapt to different activities, moods and times of day. As if your kids need more of an excuse to spend their lives in their rooms – SwitchLD promotes healthy circadian rhythms that are marked by ambient room lighting.
Smooth, Deep LED Dimming
Dimming quality can dramatically affect how a lighting installation looks and feels. A system that flickers, becomes unstable or suddenly shuts off at lower levels can undermine an otherwise carefully designed space.
SwitchLD Gen2 provides smooth dimming from 100% down to 0.3% with just about every fixture that GM Lighting offers This wide dimming range allows the same installation to move from bright task illumination to a subtle nighttime glow.
Because the dimmer and power supply are contained in the same device, SwitchLD Gen2 also eliminates many of the compatibility problems associated with using separately sourced components.
The result? Predictable, responsive control from the top of the dimming range to the bottom.
Designed for Easier Installation
Combining the power supply and dimmer into one device simplifies both the lighting plan and the installation.
SwitchLD Gen2 fits a standard single-gang electrical box and can also be used in multi-gang installations. It supports both single-pole and three-way switching configurations, providing flexibility for rooms with more than one entrance or control location.

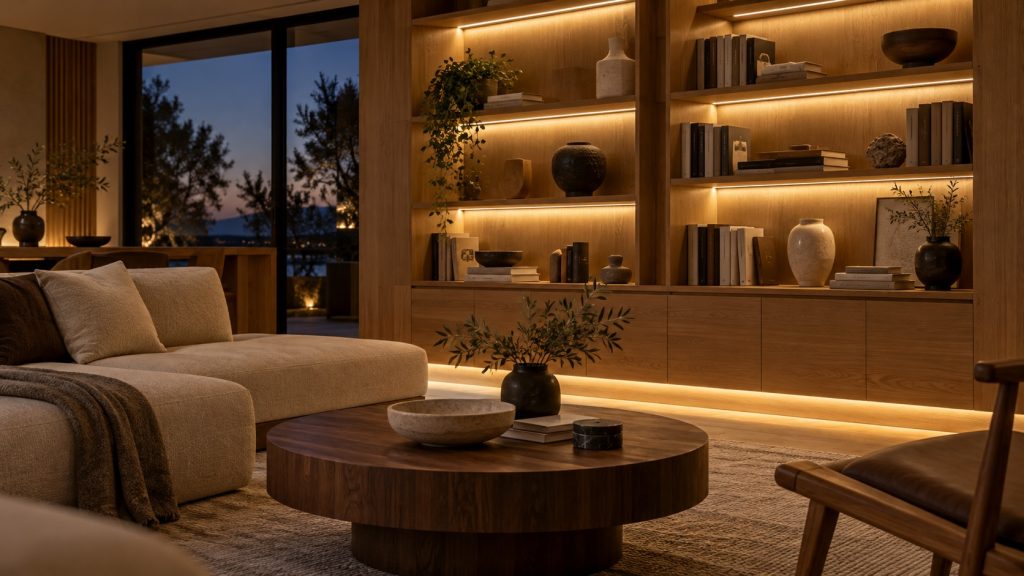

By placing the low-voltage LED power supply at the wall control, SwitchLD Gen2 can reduce the need to find a separate, accessible location for a conventional remote driver. This can be especially valuable in cabinetry, millwork and architectural lighting applications where equipment space may be limited.
The switch color is selected when ordering, allowing the control to coordinate with the surrounding wall finishes and electrical devices.

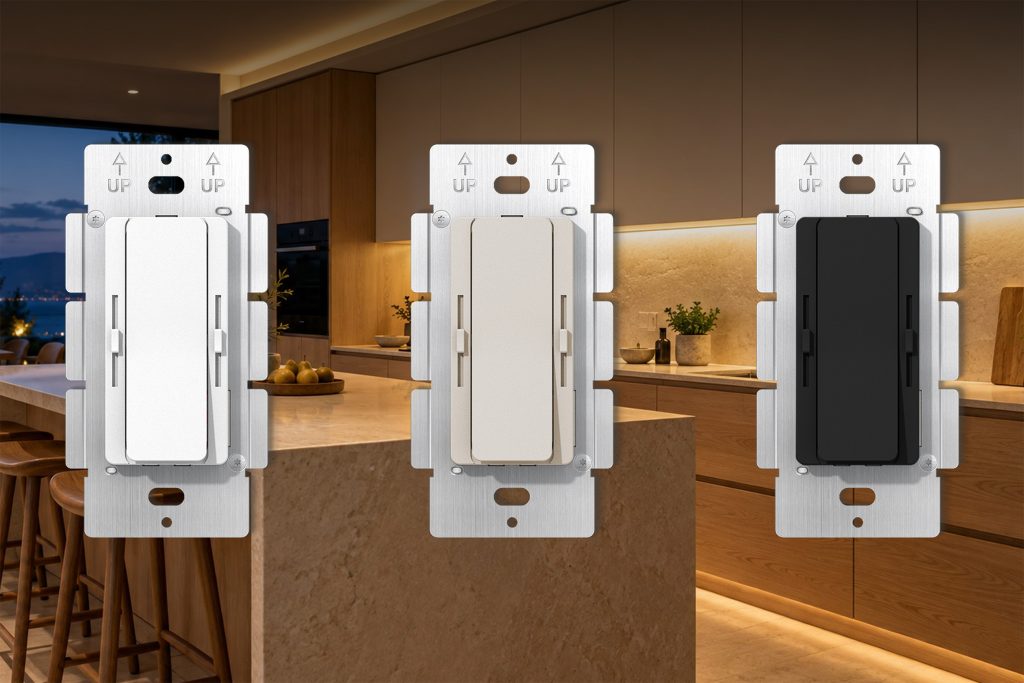

Its modern design fits standard Decorator-style wall plates allowing the control to coordinate with the surrounding wall finishes and electrical devices. The Driver-Dimmers are available in three factory-selected colors:
Made for 12V and 24V Constant-Voltage LED Lighting
SwitchLD Gen2 drives and dims compatible 12VDC or 24VDC LED tape and lightbars directly from standard 120VAC power.
That makes it well suited for applications such as:
The appropriate SwitchLD model should be selected according to the operating voltage, control type and wattage requirements of the connected LED lighting.
For tunable-white applications, SwitchLD Gen2 works with compatible two-channel, three-wire LED sources. The control adjusts the warm-white and cool-white channels to produce the desired color temperature while also controlling overall brightness.
Built-In Protection and Reliable Performance
SwitchLD Gen2 is designed to protect both the wall control and the connected LED lighting.
Built-in safeguards address overload, short-circuit and over-temperature conditions. The unit automatically recovers after the electrical fault is cleared or after the driver has cooled.
The SwitchLD Gen2 family also offers important performance and compliance features, including:
Output capacity varies by model and voltage. Installers should confirm that the total connected LED load remains within the selected model’s rated capacity. Allowing additional capacity below the maximum rating is also a good practice that can help extend driver life.
Less Equipment. Fewer Compatibility Questions.
Every separate component in a lighting system introduces another specification, another connection and another potential source of incompatibility.
SwitchLD Gen2 simplifies the system by bringing the LED power supply and dimmer together in one wall-mounted device. There is no separate driver-and-dimmer combination to coordinate, fewer components to locate and a more direct path from 120VAC power to controlled low-voltage illumination.
For installers, that means a cleaner and more efficient solution. For designers, it means flexible light levels and optional tunable-white control. For the person using the room, it means sophisticated lighting that remains as intuitive as operating a wall switch.
SwitchLD Gen2 may look like a wall switch. Inside, it’s running the whole show.
SwitchLD Gen2 Frequently Asked Questions
What is an LED wall dimmer with an integrated power supply?
It is a wall-mounted device that converts 120VAC building power to the low-voltage DC power required by LED lighting while also controlling its brightness. SwitchLD Gen2 combines these functions in one compact device.
Is SwitchLD Gen2 available for both 12V and 24V lighting?
Yes. SwitchLD Gen2 is available for compatible 12VDC and 24VDC constant-voltage LED tape and lightbars. Select the model that matches the operating voltage and wattage requirements of the connected lighting.
Can SwitchLD Gen2 control tunable-white lighting?
Yes. Tunable-CCT SwitchLD models control compatible two-channel, three-wire LED sources, allowing the user to adjust both brightness and color temperature.
How low can SwitchLD Gen2 dim?
SwitchLD Gen2 provides smooth dimming from 100% down to 0.3% with compatible constant-voltage LED lighting.
Does SwitchLD Gen2 fit a standard electrical box?
Yes. SwitchLD Gen2 fits a standard single-gang electrical box and can also be installed in multi-gang configurations.
Can SwitchLD Gen2 be used in a three-way circuit?
Yes. SwitchLD Gen2 supports both single-pole and three-way wiring configurations. Follow the wiring instructions for the selected model when designing a three-way installation.
Can the wall plate be changed in the field for a different color?
SwitchLD Gen2 is available with a white, almond or black switch plate. The switch color is selected when ordering and is factory assembled. The selected switch color is not interchangeable after purchase.
Take Control with SwitchLD Gen2
Simplify the installation and remove the guesswork from low-voltage LED dimming. SwitchLD Gen2 brings power conversion, deep dimming and optional tunable-white control together in one modern wall switch.
Explore SwitchLD Gen2 from GM Lighting and find the right 12V or 24V control for your next LED lighting project.
